CO2 Multi Sensor System

This Product Has Been Discontinued...

And replaced by this one CryoFX has created for you:  Multi-Sensor CO2 Monitoring System Package

More info about the NEW package below (also available on the package product page above):

The CryoFX CO2 Multi-Sensor System (CFX-C2M-CM-7000) has been discontinued by the manufacturer and is no longer available for purchase.

To better support our customers, CryoFX has assembled a direct replacement package using the manufacturer's latest generation CO2 safety monitoring equipment. This updated solution provides the same core functionality while offering significantly greater flexibility and expandability for future system growth.

Recommended Replacement Package

Our recommended replacement package closely matches the functionality of the discontinued system and includes:

• 1 × Central Display Unit & Horn Strobe
  • CFX-RAD-CDU-HS1


• 2 × Single Sensor CO2 Monitoring Systems & Horn Strobes
  • CFX-RAD-SEU-HS1

This package is the closest equivalent to the original dual-sensor monitoring system and is ideal for most installations replacing the discontinued model.

View Recommended Replacement Package →

Expanded Remote Display Package

For applications requiring a remote visual display at each monitored location, CryoFX also offers an upgraded package featuring remote display sensor units.

This package includes:

• 1 × Central Display Unit & Horn Strobe
  • CFX-RAD-CDU-HS1


• 2 × Remote Carbon Dioxide CO2 Storage Safety 3 Alarm Units
  • CFX-RAD-0102-6-HS2

Each remote sensor includes an integrated remote display and additional horn strobe for enhanced local notification.

View Remote Display Package →

Need Additional CO2 Sensors?

Similar the discontinued system, the new platform is fully modular and expandable.

If your installation requires monitoring more than two locations, simply add additional compatible sensor units to either package during checkout.

Compatible expansion options include:

• CFX-RAD-SEU-HS1 Single Sensor CO2 Monitoring System
• CFX-RAD-0102-6-HS2 Remote Display CO2 Monitoring System

This allows your CO2 monitoring system to grow with your facility without replacing the entire control system.

Purchase Individual Components

If you are expanding an existing system or replacing individual components, each product is also available separately.

• Central Display Unit & Horn Strobe
• Single Sensor CO2 Monitoring System
• Remote Display CO2 Monitoring System

Shop Individual Components →

Why the New System?

The latest CryoFX CO2 monitoring platform offers several advantages over the discontinued system:

• Modular design for easier future expansion
• Add additional sensor locations at any time
• Multiple package configurations available
• Individual replacement components available
• Professional CO2 safety monitoring for beverage systems, CO2 storage rooms, dry ice storage, breweries, restaurants, laboratories, indoor agriculture, and other commercial CO2 applications
• Designed to meet modern CO2 safety monitoring requirements while providing greater installation flexibility

--------

Discontinued Product Information below:

Users may configure modules (sensor, horn/strobe, and key switch) from the main CFX-C2M-CM-7000 tablet either in direct connection or through daisy-chaining modules together.

The latest version CM-7000 2.0.4 software update enables users to easily address 12+ more horn/strobe modules on any string.

With the CFX-C2M-CM-7000, you can ensure that you and your employees are safe and protected, and should an incident occur rely on the CFX-C2M-CM-7000's ability to trigger an exhaust fan or send an immediate alarm to the fire department or monitoring company.

**Please note: High concentrations of carbon dioxide in confined spaces are dangerous and may lead to negative health problems ranging from fatigue, asphyxiation, or even fatality, if not properly monitored

Features

• 8" Touch Screen Display Panel
• 12+ easily addressable CO2 Sensors (contact us, for configuration details)
• 100% Clean, Modern Appearance - All cables can be hidden
• Customer Configurable Alarm and Notification Settings
• Mute Push Button to temporarily mute audible alarms
• Integrated Speaker and USB port
• Meets NFPA, IFC, and NBIC Requirements
• Meets OSHA and NIOSH TWA Standards
• Meets all local municipality inspection codes and requirements

Models & Additions

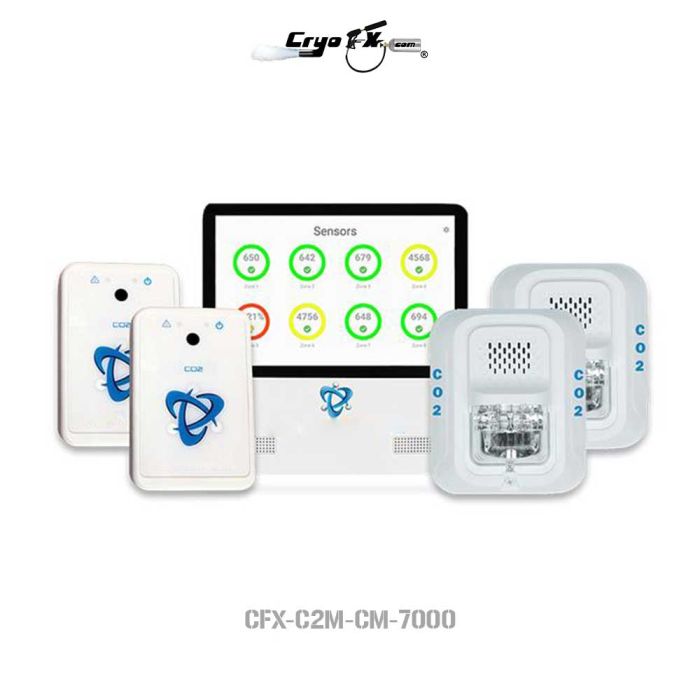

CFX-C2M-CM-7000 - CO2 Multi-Sensor System - Includes: (1 Main 8" Touchscreen Control Tablet, 2 Sensor Units, 2 Horn Strobes, Mounting Hardware, Cables, Power Supply and Safety Signage.) $1997

CFX-C2M-CM-7002 - Remote Relay Key Switch Add On $397ea

CFX-C2M-CM-7003 - Sensor Unit Add On $447ea

CFX-C2M-CM-7004 - Horn Strobe Add On $177ea

CFX-C2M-CM-7006 - Mini Display Tablet $397ea

CFX-C2M-SV-1027 - CM-7000 Solenoid Valve Shut Off Add On $297ea

Applications

• Restaurant and Food
• Breweries and Wineries
• Beverage Dispensing
• Medical and Scientific
• Agriculture
• Safety

Specifications

• Measurement Range: 0-5% (0-50,000 ppm)
• CO2 Measurement: NDIR (Non-Dispersive Infrared
• Alarms: 5,000 TWA, 5,000 ppm, 1.5%, and 3% (default)
• Custom Alarms: 1%, 2%, 2.5%, 3.5%, 4%
• Measurement interval: 2 seconds (0.5Hz)
• Operating Temperature: 32-122°F (0-50°C)
• Calibration: Zero with Nitrogen or Factory Calibration
• Connections: Input/ Output/ Strobe - CAT5 8 pin connector
• Sensor Life Expectancy: > 15 years

Electrical

• Power Supply: 110-220 VAC 50/60 Hz to 12 VDC Power Adapter
• Power Input: 4.5-5.25 VDC
• 24VDC hard-wired power option
• Power Consumption: 300mA peak, 30mA average
• Can be connected to a UPS for Battery Backup
• Horn Strobe: 90-120dB 3KHz, 110 cD
• Max distance any sensor or horn/strobe can be from the tablet is 250 ft.

Warranty

• 1 year - See CryoFX® Terms and Conditions.
