Fitting Adapter Builder

Pricing is per fitting end (2 Ends equal 1 adapter). Base charge of $10 for assembly ($5/each end), which is shown on first selection option for "USA NPT 3/8" Male Fitting" in drop down selections below.

In stock


Customizable Options:

Description / Fitting Adapter Builder

CryoFX® Fitting Adapter Builder is your go to for Liquid or Gas Co2 Applications, Hydraulic or Air Applications, or most other appplications where you need an adapter made for you without the headache of making it yourself.

USA Assembled in Las Vegas, Customizable to ANY Fitting!

We have a How To video in the images bar showing you how to use this builder. You may also see the same video here: https://youtu.be/zBWhqItMrpw

NPT - National Pipe Thread, which is generally used within the United States, Canada, Mexico and South America.

Swivel (Called "Pro Series") connection is normally selected in place of Quick Disconnect fittings as Quick Disconnect fittings inhibit the flow of Liquid Co2, reducing plume size and output. Swivel connections are similar to JIC in that they do not require thread tape, just two wrenches, which professionals have on site already! A Swivel connection counterpart is a Male NPT of the same size.

BSPP - British Standard Pipe Thread Parallel , which is generally used in the European Union, and all other surrounding continents except Japan, N. & S. Korea, and China. (Please check local fitting names for confirmation. For questions, please email us at Sales at CryoFX.com)

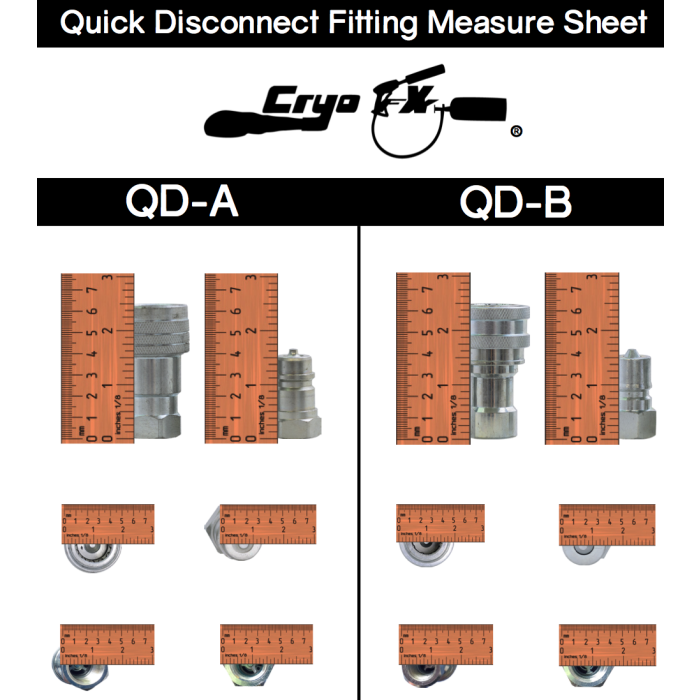

Quick Disconnect - For Special Effects purposes come is two types, "A" and "B". See images for difference example. The female QD (Quick Disconnect) A and B look the same but are not. They are identifiable by the markings on the ring, which will note ISO7241-A XXX" or ISO7241-B XXX" whereas A or B notate the type and XXX" is size (3/8, 1/2, etc). Other markings may show KZE-## XXX" BSP,  KZE-#-## XXX" BSP, or  KZE-SF-XXX" or something similar, whereas the #'s notate a number (generally relevant to the type depending on manufacturer) and the XXX" is the size (3/8, 1/2, etc). Send us an email or text with photos (best method) on your fitting or the alphanumeric notation on the fittings and we can help with identification.


Pressure Note For "Co2 Special Effects":
Co2 generally does not get above 1000psi in normal temperature and working conditions, depite almost never reaching 2000psi in "Co2 Special Effects". Therefore hoses rated at 3000 psi or more are overkill for special effects purposes, will weigh more, and are not as flexible. However, if you need them, we have them also!
