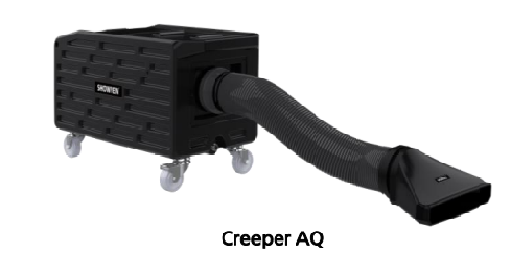

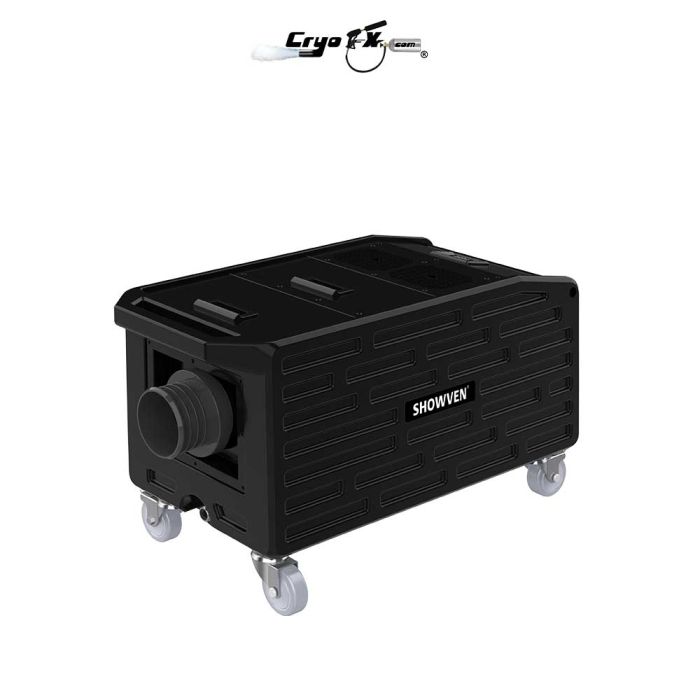

Showven Creeper AQ Low Fog Machine

Showven Creeper AQ Low Fog Generator is the perfect low lying ground fogger that does not u se dry ice! Keep running this low ground fog machine continuously without worrying about refilling, like the dry ice fog machines require.

Features and advantages for Showven Creeper AQ Low Fog Generator

• Molded enclosure, lighter, durable as well as rustless.
• Multi-optimized air supply system, ensure farther and more uniform fog output.
• 30 heads atomizers, thicker fog output.
• Weather proof design
• Abrasion-resistant silent caster
• Latest rapid heating technology, 1-2min heating up time
• Adjustable fog density, moisture and fan speed, versatile application to meet different requirements
• Low-water sensor
• Patented fog leakage prevention technology, no fog leakage even refill the machine when it is working
• User friendly LCD control panel
• 3.3L fluid tank, support 2h continuous output.
• Advanced auto water refill system

Specifications for Showven Creeper AQ Ground Fog Machine:

• Model: Creeper AQ
• Dension: 805×390×480mm
• Weight: 35kg
• Power: 2000W
• Voltage: AC200-240V, 50-60Hz / AC100-120V, 50-60Hz
• Heat-up Time：Appr. 1-2min
• Fluid Tank Capacity：3.3L
• Water Tank Capacity: 24L
• DMX channels: DMX-512 / Remote control
• Output Adjustable：1-100
• Max. Fog Output: 15000 cuft/min
• Max. Coverage：Appr. 300㎡
• Max. Fluid Consumption.: Appr. 32ml/min
• Max. Water Consumption：Appr. 375ml/min
• Continuous Output：YES
• Fully loaded Output Time：100+ min

Consumable：FX-M Fog Fluid, Water




_____________________________________________________



Showven Creeper AQ Low Fog Generator

SHOWVEN Technologies Co., Ltd.

Thanks for choosing SHOWVEN® CREEPER AQ series low fog generator, we wish it will bring
you lots of exciting moments.
Please read the following manual carefully before operating this product.
Δ SAFETY CONSIDERATIONS
\ Unauthorized repair are prohibited, it may cause serious incident
\ Make sure power supply in consistent with the rated voltage of the equipment, and the
socket must well grounded. Unplug and turn off the machine when not use
\ CREEPER AQ series machine can be used both indoor and outdoor, with better effect for
indoor use. Please try to keep the machine dry
\ Not use the machine in high temperature
\ Installed in well ventilated area, ensure at least 50cm space around the machine, cover of
the nozzle is forbidden
\ For adult use only, keep it away from children, fire, inflammable and explosive articles
\ If the machine fails to work, please stop operation and unplug the machine. Check fog
fluid bottle, water tank, fuse, power connection etc. carefully, if can t solve the problem,
please contact SHOWVEN® or your local SHOWVEN® partner for advise
\ Suggest use SHOWVEN® original FX-M fog fluid, other fluid may lead to clog or
malfunction
\ In case of eye contact of fog fluid, please wash it with clean water. If fluid is swallowed
immediately look for medical advice
\ Please do NOT adding any other material such as grease, pigment, gas etc to the fluid
bottle or water tank
\ The device shall not be altered and applied to other use purpose
Δ Technical Specifications
\ Model: Creeper AQ PLUS Creeper AQ
\ Dimension: 950×500×540mm 805×390×480mm
\ Weight: 48kg 35kg
\ Voltage: AC200-240V, 50-60Hz AC200-240V, 50-60Hz
AC100-120V, 50-60Hz AC100-120V, 50-60Hz

\ Work Power: 2500W 2000W
\ Heat-up Time: Appr. 5min Appr. 5min
\ Fluid Tank Capacity: 3.3L 3.3L
\ Water Tank Capacity: 35L 24L
\ DMX-512: YES YES
\ Remote control: YES YES
\ Output Adjustable: 1-100 1-100
\ Max. Fog Output: 20,000 cfm/min 15000 cfm/min
\ Max. Coverage: Appr. 400 Appr. 300
\ Max. Fluid Consumption. Appr. 32ml/min Appr. 32ml/min
\ Max. Water Consumption: Appr. 500ml/min Appr. 375ml/min

\ Continuous Output: YES YES
\ Fully loaded Output Time: 100+ min 100+ min
\ Consumable: FX-M Fog Fluid, Water FX-M Fog Fluid, Water

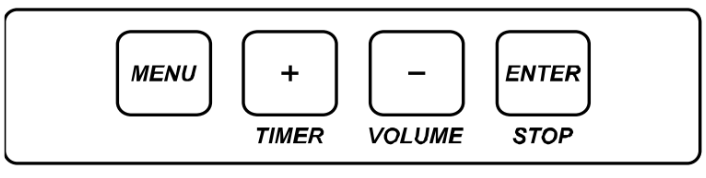

Δ Operation Panel
1. Control button area



MENU: switch through setup menu
+: Parameter up; multiplex “TIMER” (smoke output time)
-: Parameters down; multiplex “VOLUME” (smoke output start)
ENTER: confirm and save parameters (screen will blink once when save successfully); multiplex
“STOP”.
NOTE: Screen will switch to main interface automatically if not press any button in a period
time.
Δ Interface
1. Main interface:

First Line: DMX address and Fan Speed, “:” blinks when there is DMX in signal
Second Line: Shows machine core temperature and Fog Volume. The machine ready for
operate when tempera ture value close to 100%

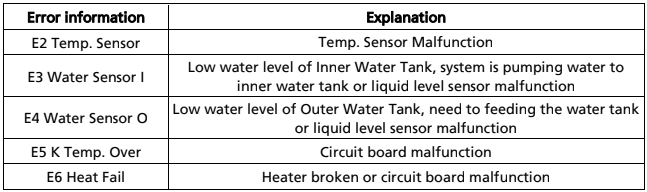

2. Error information:

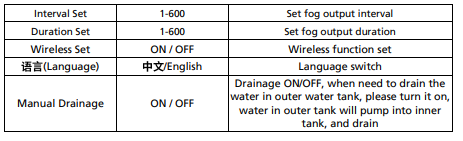

3. Setting Menu:
Press “MENU” switch through setup menu.

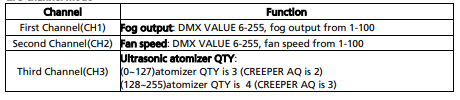

Δ DMX Channel

There are two DMX channel mode for Creeper AQ series machine, 2 channel mode and 3
channel mode switchable. Default is 2 channel mode, if need to set to 3 channel mode
please contact SHOWVEN®

1. 2 channel mode

2. 3 channel mode

Δ Wireless Control
Wireless control is used to remote control the machine. Before use the wireless function please
make sure machine was ready, wireless status was ON, and no DMX cable connection

Remote controller:
A. Fog output START
B. Fog output STOP
Remote control is optional configuration.
When wireless controller is not working properly, please switch to the
Wireless Control menu, set it into ON status, and press ENTER key to save the
change.
When machine on Wireless Control interface, operator can match the
CREEPER AQ mini with remote controller by pressing any key on remote
controller for 1s, the machine screen flash once means match was finished

Δ Operation
1. Installation
Check the machine and accessories, ensure it is in good status. Place the machine on a flat
surface, tilting may result in inaccurate water level alarm.
2. Fill the machine with FX-M fog fluid
Fill the liquid tank with FX-M Pro medium fog fluid. Please use original fog fluid from
SHOWVEN®
, Warranty will be void if any other type fog fluid is used.
3. Power ON Creeper AQ (PLUS)
① Connect the machine to suitable rated power supply. Please ensure power supply meets the
requirement. Always connect the machine to a protected circuit and ensure it is properly
grounded.
② Turn on the machine, it heat up automatically, and shows “WARMING UP” on LCD screen.
4. Fill the water tank
Fill the outer water tank with pure water until the alarm of water shortage on LCD screen (E3,
E4) disappear. Operator can also connect the machine to water supply with G1/6 pipe
connector, machine will refill it automatically.
5. Setting
Once the machine has reached operating temperature, temp., fog output and fan speed will
show on the screen, please adjustable it accordingly.
If use a DMX to firing, please also set the DMX address and connect with a DMX cable.
6. Firing
Press “-”(VOLUME) to start generate low fog, press “ENTER”to stop.
If use DMX console control, please follow the previously introduced DMX channel information
to firing the machine.
7. Power OFF and clean up
① To turn off the machine, please POWER OFF and unplug the power cable.
② Please empty the fluid tank and wash the pipe system with distilled water (put distilled
water in fog fluid tank and firing for few minutes).
③ For transportation or not use for a long time, please drain the water inside machine.

Δ Maintenance
1. Use SHOWVEN® original fog fluid FX-M.
2. Check the filter in fluid tank before each show, clean or replace it when it is
necessary.
3. Running the machine at least once per month.
4. Clean machine regularly avoid dust, liquid accumulate on the machine.
5. Whenever storage or not use the machine for a period of time, please use distilled
water to wash the pipe system by filling the fluid bottle with distilled water and
firing the machine several minutes.
6. Whenever storage or not use the machine for a period of time, please drain the
machine and keep it dry.
Δ Warranty Instructions
\ Sincere thanks for your choosing our products, you will receive quality service from us.
\ The product warranty period is one year. If there are any quality problems within 7 days
after shipping out from our factory, we can exchange a brand new same model machine
for you.
\ We will offer free of charge maintenance service for machines which with hardware
malfunction (except for the instrument damage caused by human factors) in warranty
period. Please don't repair machine without factory permission.
Below situations NOT included in warranty service:
\ Damage caused by use other type of fog fluid which is not SHOWVEN®
FX-M.
\ Damage caused by improper transportation, usage, management, and maintenance, or
damage caused by human factors;
\ Disassemble, modify or repair products without permission;
\ Damage caused by external reasons (lightning strike, power supply etc.)
\ Damage caused by improper installation or use;
For product damage not included in warranty range, we can provide paid service.
Invoice is necessary when applying for maintenance service from SHOWVEN®
.
