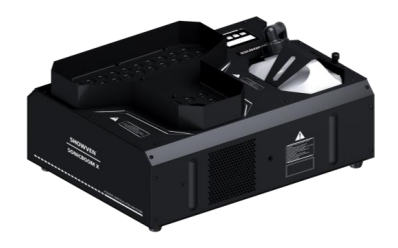

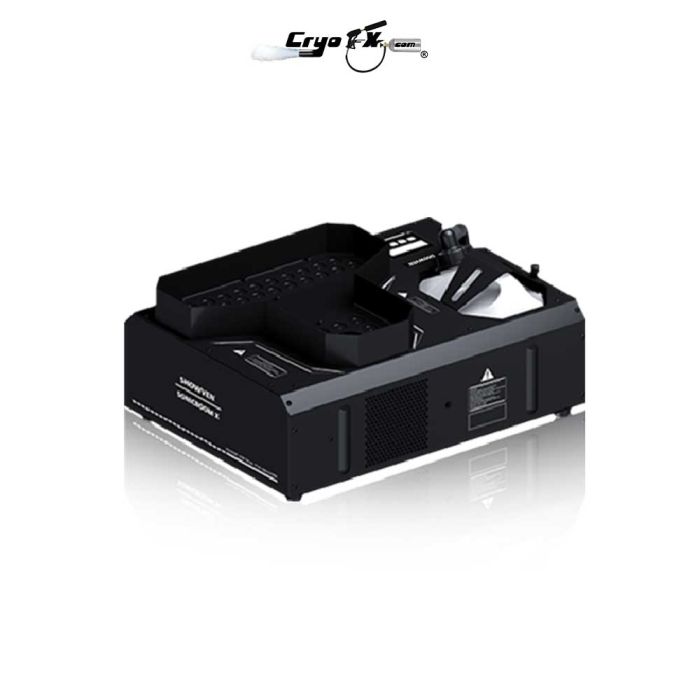

Showven SonicBoom X SmokeJet

Showven SonicBoom X Smokejet is one of the most sought after professional series vertical fog machines. Similar to the Chauvet Geyser, this vertical fog machine with lights is a must have when you don't want to, or can't use, co2 jets. Also known as a co2 jet fog machine or vertical smoke machine, you'll be impressed with this "fire fog machine", and yes it can imitate fire with the LED lights on red/orange setting!

Features and advantages for Showven SonicBoom X Smokejet

• Instant smoke generation, close to CO2 Jet
• No need of CO2 tank, safer and easy carry
• No generation of CO2, environmental friendly
• Super long stable effects time, upto 12min after fill up
• Super fast smoke dissipate with original fluid
• Cost effective consumables
• Excellent heating module design, fast temp. recovery
• Low power mode (220V version), lower power supply requirement
• Unique constant pressure system, consistent smoke effect
• Pipeline integration technology, easy maintenance, stronger burst
• 35pcs 5W LED, independent smoke column color change
• Easy installation at any angles even place upside down

Specifications for Showven SonicBoom X Smokejet:

• Model: SONICBOOM X
• Dimension: 482 x 408 x 215mm
• Weight: 17.2kg
• Power: 3000W/1500W (220V), 2000W (110V)
• Output height: up to 10m
• LED power: 5W*35PCS
• Heat-up time: 5min (220V Version), 7min (110V Version)
• MAX continuous output duration: 8s
• Smoke output: 55000cuft/min
• Tank capacity: 2.5L
• DMX channels: 11 / 1 channel optional

_____________________________________________________________________________________

SHOWVEN Technologies Co., Ltd.

Thanks for choosing SHOWVEN® SONICBOOM® X smokejet, we wish it will bring you lots
of exciting moments.
Please read the following manual carefully before operating this product.

Δ SAFETY CONSIDERATIONS
\ Unauthorized repair are prohibited, it may cause serious incident
\ This product is not waterproof design, please keep it dry, do not use it when there are
fog fluid leakage or wet from rain.
\ Make sure power supply in consistent with the rated voltage of the equipment, and
the socket must well grounded. Unplug and turn off the machine when not use.
\ For adult use only, keep it away from fire, inflammable and explosive articles.
\ Installed in well ventilated area, ensure at least 50cm space around the machine, cover
of the nozzle is forbidden.
\ If the machine fails to work, please stop operation and unplug the machine. Check
fog fluid, fuse, power connection etc. carefully, if can’t solve the problem, please
contact SHOWVEN® or your local SHOWVEN® partner for advise.
\ Only use SHOWVEN® original FX-S fog fluid, other fluid may lead to clog or
malfunction. Please do not adding any other material such as pigment, water etc to
the fuel bottle.
\ To avoid fluid spill, make sure fog fluid not exceed related MAXIMUM fluid level line.
When install SONICBOOM® in invert direction, the fuel bottle should installed upward.
\ In case of eye contact of fog fluid, please wash it with clean water. If fluid is
swallowed immediately look for medical advice.

Δ Description
SONICBOOM® X SOMEKJET is a CO2 jet simulator, it uses fog fluid instead of cumbersome
CO2 tank, which ensure much safer, environmental friendly and with longer effects time.
Equipped with 35 pcs of LED can achieve multi color change of the smoke column.
Compared with existing vertical fog on the market, SONICBOOM® X smokejet equipped
with larger heating block ensure much faster temperature recover after each firing.

Δ Technical Specifications
\ MODEL: SONICBOOM® X
\ DIMENSION: 482×408×215mm
\ WEIGHT: 17.2kg
\ VOLTAGE: 220V/110V, 50/60Hz
\ FUSE:15A/250V
\ POWER: 3000W/1500W(220V), 2000W(110V)
\ LED: 5W×35pcs
\ MAX OUTPUT DISTANCE: 10m
\ MAX CONTINUOUS OUTPUT DURATION: 8s
\ SMOKE OUTPUT: 55000cuft/min
\ TANK CAPACITY: 3L
\ FLUID CONSUMPTION RATE: 5min/L
\ DMX CHANNELS: 1/11
\ CONSUMABLES: FX-S

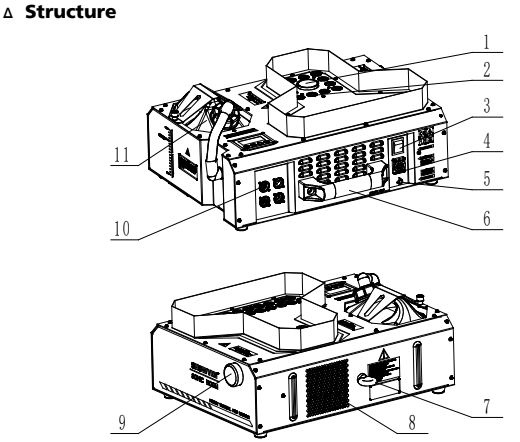

1. Output Nozzle
2. LED
3. Power Switch
4. Power IN
5. Fuse
6. Handle
7. Safety Loop
8. Cooling Fan
9. Wireless Module (customized, only available on wireless version machine)
10. DMX Socket (SONICBOOM® with only 3-PIN; SONICBOOM® X with both 3-PIN and 5-
PIN)
11. Fluid Bottle

Δ Operation Panel
1. Control button area

MENU: Short press to switch interface, press and hold for 3 seconds can switch to the
advanced setup interface
+: Parameters up; multiplex “TIMER” (smoke output time)
-: Parameters down; multiplex “VOLUME” (smoke output start)
ENTER Confirm and save parameters, screen will blink once when save successfully.
multiplex “STOP”.
NOTE: Screen will switch to main interface automatically if not press any button in about
15s.
Example of “TIMER” setting function in the menu:
1. “set interval 10s”
2. “set duration 2s”
Press “VOLUME” button under main interface, SONICBOOM® start to generate smoke,
and will repeat firing 2s, interval of 10s. Press “STOP” to stop the machine.

Δ Interface
1. Main interface

First line: Display DMX address is “1”. “:” blinks when there is DMX IN signal.
Second line: Shows machine core temperature and pressure. The machine ready for
operate only when both temperature and pressure value close to 100%.

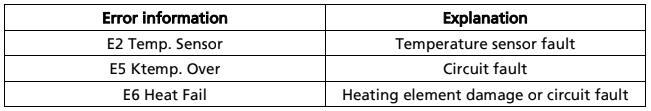

2. Error information

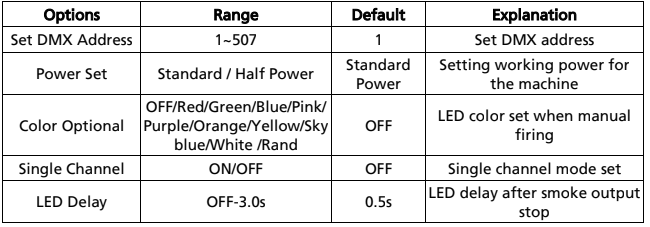

3. Setting Menu:
Press “MENU” switch through setup menu.

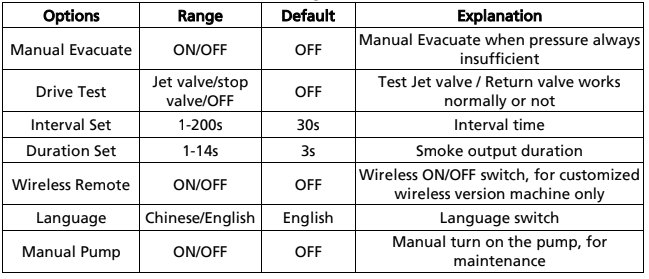

4. Advanced Menu:
Press “MENU” for 3s, enter advanced setting interface

Δ DMX Control
There are two DMX channel mode for SONICBOOM® X, single channel mode and 11
channel mode.

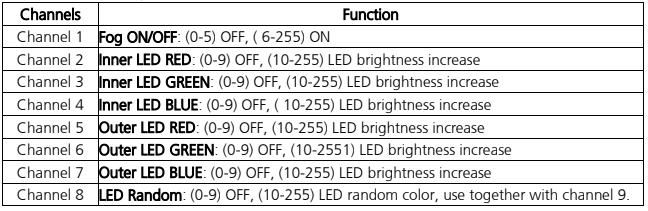

11 channels mode
SONICBOOM® occupies 11 DMX channels.

NOTE: Manual function disabled when DMX connected.

Single channel mode

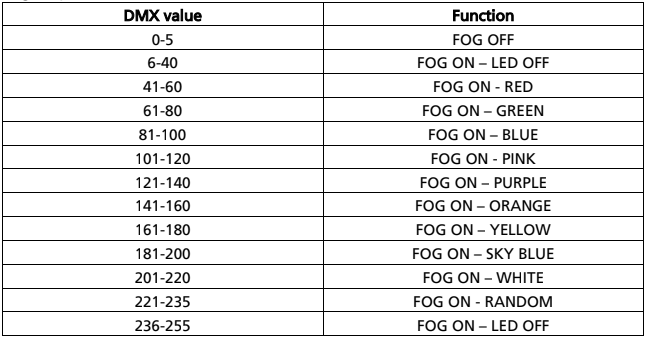

Fog output and LED color controlled in the same channel.

Δ Operation Guide
1. Installation
SONICBOOM® can be installed in any direction even upside down. But please watch
out for the fog fluid leakage from the bottle.

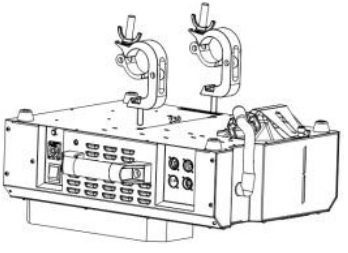

For upside-down installation, please remove the bottom panel of fluid tank, and
installed to the other side (top panel), the fluid tank should installed upward as below
picture. For safety, hanging installation should install safety rope.

2. Fill the machine
Fill the fluid bottle with fast dissipate fog fluid. Please not exceed the maximum fuel
level when filling.
For best effect please use SHOWVEN® original fluid FX-S. Improper use of fluid will
lead to machine malfunction. Warranty will be void if any other type of fog fluid is
used.
3. Power ON SONICBOOM®
Connect the machine to suitable rated power supply. Make sure power supply in
consistent with the rated voltage of the equipment, and the socket must well
grounded.
Turn on the machine and allow it to heat up.
There are Standard power mode and Half power mode switchable for 220V version
SONICBOOM® X, based on the power supply circumstance operator can switch the
power mode in the menu. When in Low power mode the heating up time will be
longer.
4. DMX setting
Set DMX address for each machine. Connect machines with DMX cable in series.
Suggest to plug in a DMX terminator into the DMX out in last unit of machine.
If operate manually or with wireless remote (customized wireless version), there is no
need to connect DMX cable.
5. Firing
Once the machine has reached operating temperature, the LCD display will show “T:
100%”. Now the machine is ready for operation.
Manual operation: Press the “ – / VOLUME“ button to start making fog, press “ + /
STOP” to stop.
DMX control: please operate according to the DMX control table.
6. Power OFF and packing
After each show please turn off machine, allow it cool down before packing the
machine.
Whenever ship the machine, please empty the fluid bottle to avoid fog fluid spill out
from fluid bottle during delivery.

Δ Wireless Control Information (customized version)
When use wireless remote control, please unplug DMX cable connection on machine, set
Wireless Setup at ON status, match the remote controller with machine.

Remote controller

A: OFF / SET, Firing OFF, SET means match machine
with remote controller.
B: ON – LED WHITE
C: ON – LED OFF
D: ON – LED color set on machine (the color selected
at color optional)

Δ FAQ
Fluid spill
Fluid spill because heat can’t effectively transmit to fog fluid, leads to insufficient
atomization of the fog fluid in the heating pipe.
Possible Reasons:
Use low quality fog fluid instead of SHOWVEN® original fog fluid.
Use inappropriate fog fluid. For different types of fog fluid, the atomization temperature
is different.

Heating block pipe clog
Early symptom for heating aluminum pipe clog is fog fluid spill caused by insufficient
atomization. Use other brand fluid or not make regular maintenance for a long time will
definitely leads to pipe clog.

Solution for above problem:
Use SHOWVEN® original fog fluid.
Make regular maintenance. Use distilled water to wash the pump and pipe system by
running the machine 10-15 times.

Δ Maintenance
1. Running the machine at least once per month.
2. Check the filter in fluid tank before each show, clean or replace it when it is
necessary.
3. Clean machine regularly avoid dust, liquid accumulate on the machine.
4. Whenever storage or not use the machine for a period of time, please use distilled
water to wash the pipe system by filling the fluid bottle with distill water and firing
the machine several times.

Δ Warranty Instructions
\ Sincere thanks for your choosing our products, you will receive quality service from us.
\ The product warranty period is one year. If there are any quality problems within 7
days after shipping out from our factory, we can exchange a brand new same model
machine for you.
\ We will offer free of charge maintenance service for machines which with hardware
malfunction (except for the instrument damage caused by human factors) in
warranty period. Please don't repair machine without factory permission.

Below situations NOT included in warranty service:
\ Damage caused by use other type of fog fluid which is not SHOWVEN®
FX-S.
\ Damage caused by improper transportation, usage, management, and maintenance,
or damage caused by human factors;
\ Disassemble, modify or repair products without permission;
\ Damage caused by external reasons (lightning strike, power supply etc.)
\ Damage caused by improper installation or use;
For product damage not included in warranty range, we can provide paid service.
Invoice is necessary when applying for maintenance service from SHOWVEN®
