Fittings Explained

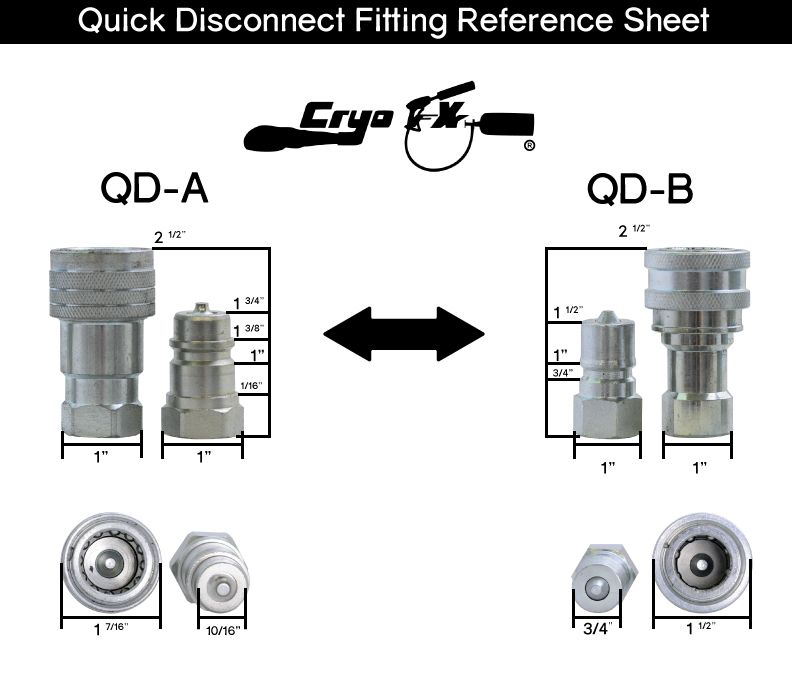

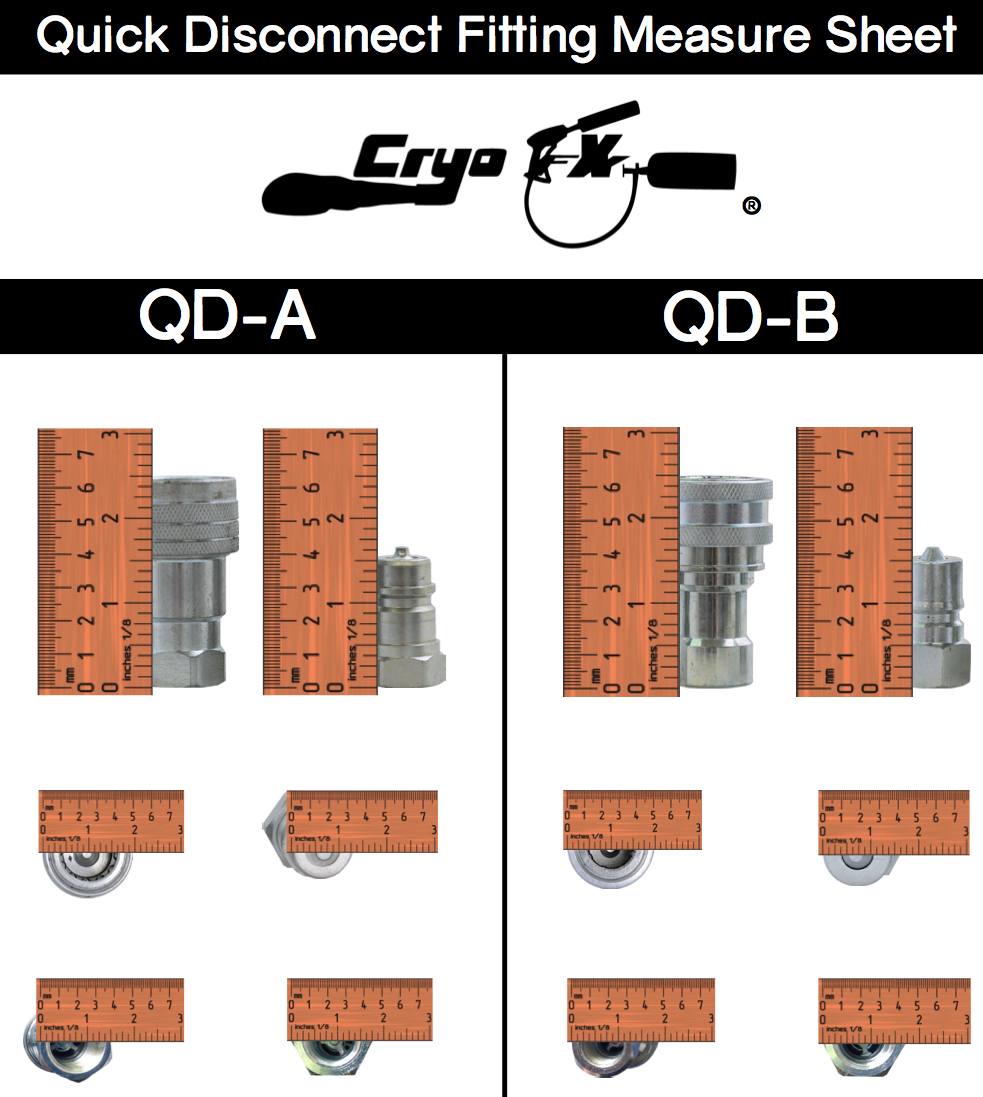

Including Co2 Fittings, Nitrogen Fittings, Gas Fittings, SAE Fittings, JIC Fittings, Quick Disconnect Fittings and more.

Which fittings to use thread tape on and which ones not to. How tight to tighten them, and which ones to use washers with.



Here's a short video about Co2 Fittings (CGA 320) Male/Female identification, not to use thread tape, always to use washer, and how tight to tighten them





Here's a short video about swivel connection fittings and how tight to tighten them (these do not use thread tape).

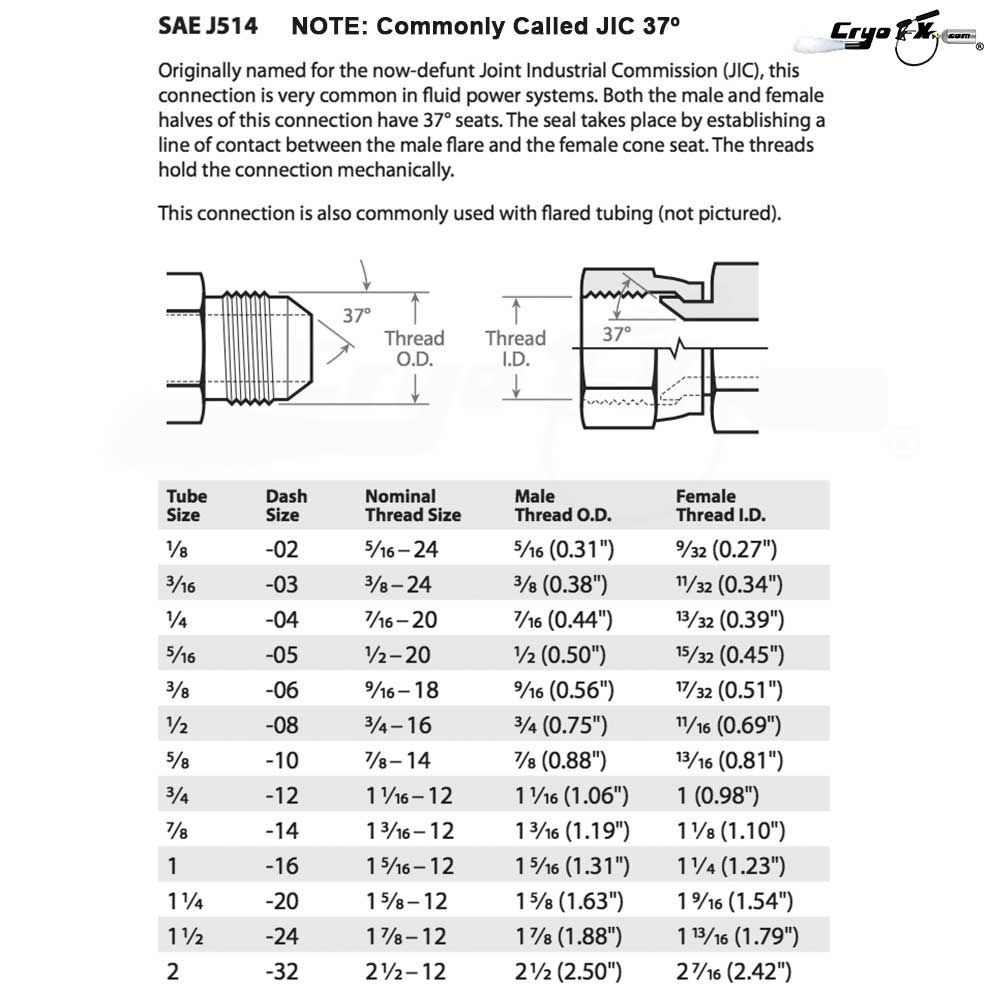

Here's a short video about swivel connection VS JIC fittings, when to use thread tape and not, what not to do with thread taped fittings, and CryoFX® "Pro Series Fittings".





---------------



Here's 3 short videos on how to use the 45º fittings with CryoFX® nozzles to achieve various output directional options.











---------------

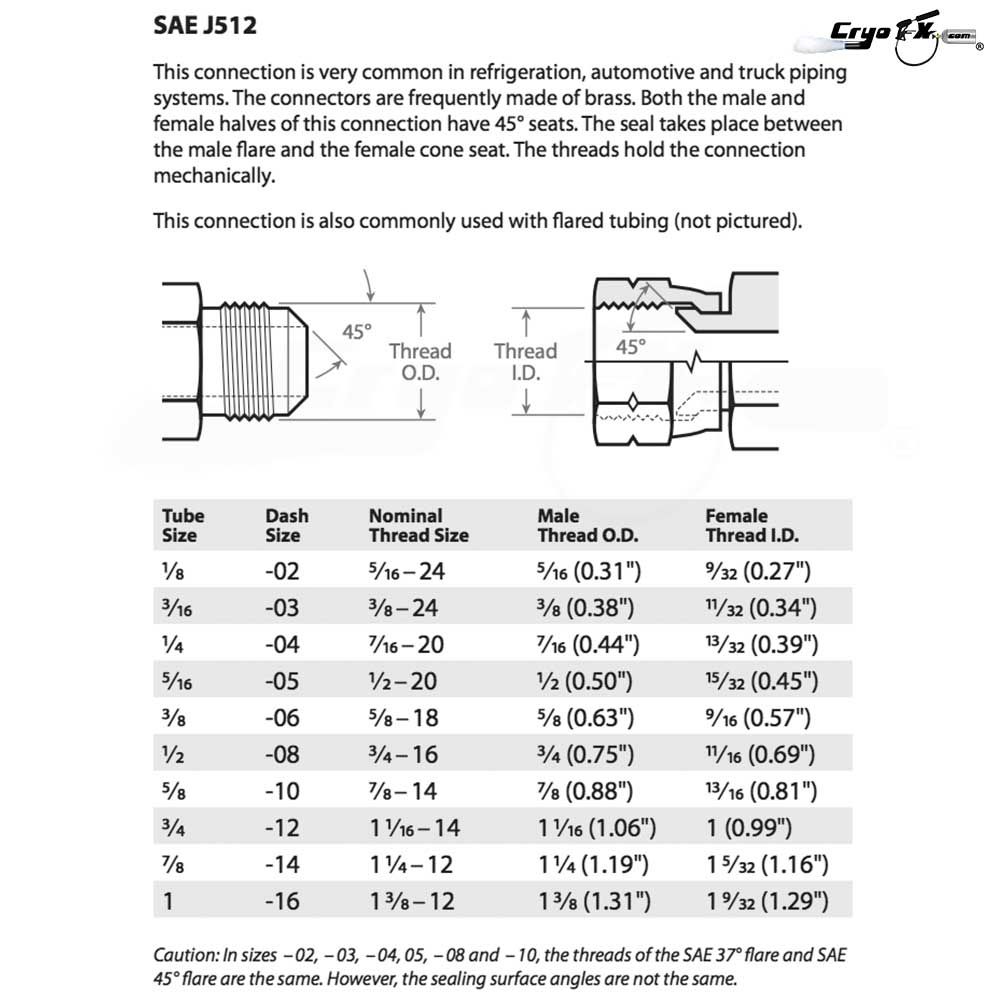

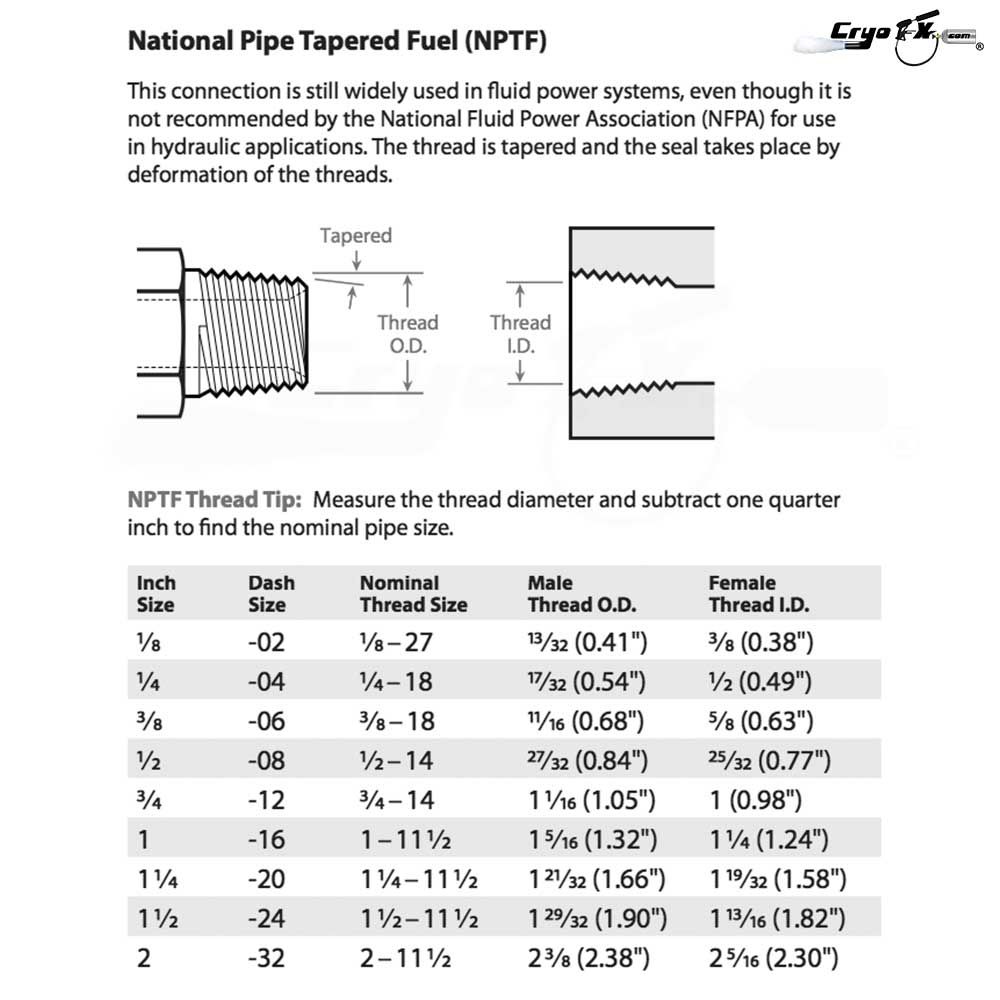

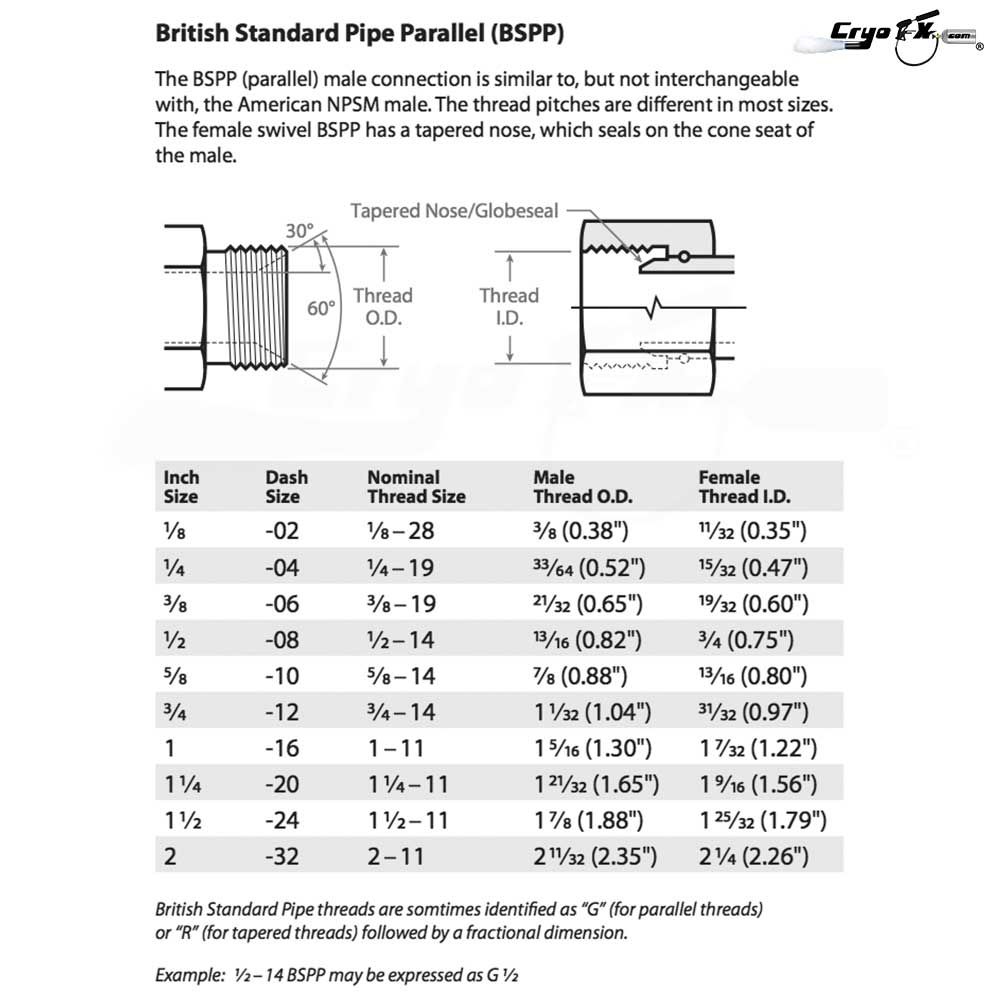

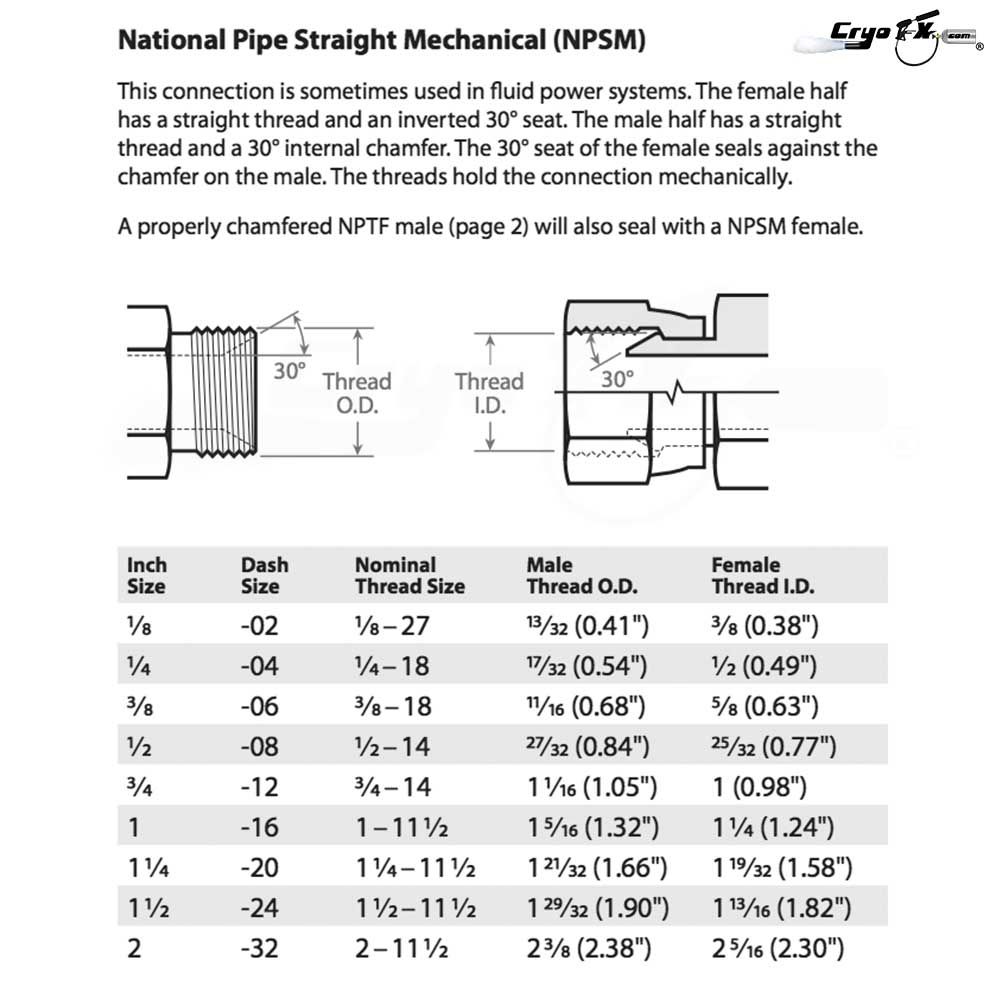

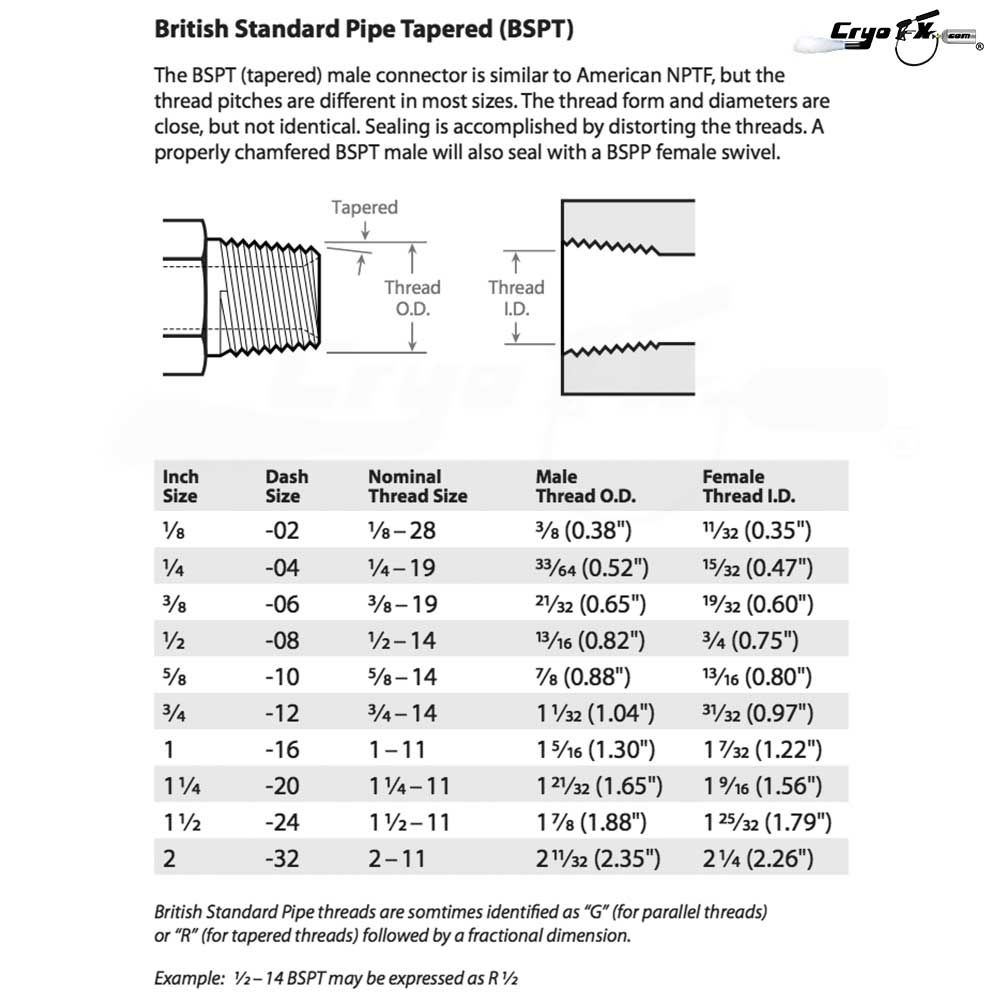

Below are additional fittings details to help in identification of types, sizes, and styles.



---------------



---------------

---------------

---------------

---------------

---------------

---------------
