Automatic Fog Fluid Refill System
In stock
Description / Automatic Fog Fluid Refill System
How it works
The system operates as a 3-component gravity-assisted pump network to automatically maintain fluid levels. The FlowBase Station (ground unit) houses the 25L fluid reservoir and pump, with an LCD control panel that monitors the system and triggers fluid delivery automatically when the overhead distribution point runs low. The FlowHub (overhead distribution unit) mounts above all connected machines and receives fluid from the FlowBase Station via a single supply line. It acts as the central distribution point, feeding fluid down to each machine's FlowTank (external satellite tank) via individual fluid lines. Each FlowTank plugs into power and auto-fills the machine's internal reservoir on demand.
Positioning and height rules
Getting the system right starts with layout planning before a single hose is run.
The FlowHub must be the highest point in the entire system. It needs to sit at least 1.5 feet above every FlowTank and fog machine connected to it. The FlowBase Station (with its reservoir and pump) must be at the lowest point, placed on the floor or ground level.
Max vertical distance from the FlowBase Station up to the FlowHub: 25 meters (82 feet). Max horizontal distance from the FlowHub out to any individual FlowTank: 40 meters (131 feet). Max hose length from a FlowTank to its fog machine: 3 feet. Keep this short; exceeding it degrades delivery.
Position your FlowHub centrally relative to all the machines it will serve. This keeps individual FlowTank run lengths as short and equal as possible, which balances fluid delivery across the system.
What's included

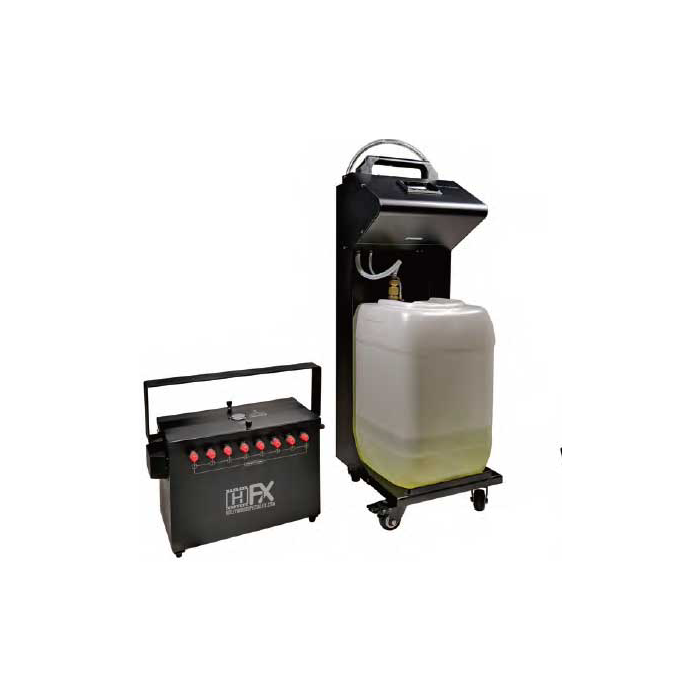

- FlowBase Station (rolling cart with 25L tank, pump, LCD control panel, breaker, power cord)
- FlowHub (transit distribution unit with quick connectors, hanging bracket, level indicator, signal cable)
- Check valve
- Warranty card and user manual
- Fluid tubing and signal cable (custom lengths available to spec)
Advisory Before Ordering
FlowTanks are sold as addons due to the variance in the number of fog machines you may have. These will change the shipping rate shown based on quantity selected. We can send a revised shipping quote at time of purchase.
We need to know the following:
- Number of fog machines you will use with this.
- Distance and heigh between the FlowBase unit and the FlowHub
- Distance between FlowHub and FlowTank
Specs
| Spec | Detail |
|---|---|
| Input voltage | AC 220–240V, 50/60Hz (120vac available) |
| Total power draw | 40W |
| Reservoir capacity | 25L |
| Max machines supported | 16 |
| Max vertical reach | ~25m (82 ft) |
| Max horizontal reach per machine | ~40m (131 ft) |
| FlowBase Station dimensions | 12" x 12.83" x 34.88" (305 × 326 × 886mm) |
| FlowBase Station weight (net) | 34.17lbs / 15.5 kg |
| FlowHub dimensions | 15.75" x 8.43" x 14" (400 × 214 × 356mm) |
| FlowHub weight (net) | 12.5lbs / 5.7 kg |
| Compatible fluids | Fog fluid, haze fluid, snow fluid, bubble fluid |
| Indoor use only | Yes |
| Control | LCD on-device panel |
Compatible fluid types
The system carries one fluid type at a time. Do not mix fluids in the reservoir. Compatible with standard water-based fog fluid, haze fluid, snow fluid, and bubble fluid.
No-fluid protection
The FlowBase Station's software-based fluid sensor monitors flow through the supply line. If the pump runs dry for approximately 1 minute, it automatically shuts off and displays a warning, protecting the pump from damage. Refill the reservoir and either disable the sensor in the menu or power cycle the unit to clear the warning.
Safety notes
Indoor use only. Do not expose to rain or moisture. The FlowHub must remain level when mounted (a built-in level indicator assists with this). Always use a safety cable when rigging the FlowHub. Do not mount on flammable surfaces. Do not connect to a dimmer or rheostat. Max ambient operating temperature: 40°C (104°F). Drain all tanks before transport.
