Complete CO2 Storage Safety Monitoring Kit

The CryoFX Complete CO2 Storage Safety Monitoring Kit (CFX-RAD-0102-6-Kit) is a comprehensive commercial CO2 monitoring system designed to provide continuous carbon dioxide detection, enhanced alarm notification, and power-loss protection in a single, professionally engineered package. Built specifically for facilities where compressed carbon dioxide is stored, transferred, or utilized, this complete system helps protect employees, customers, and property from the hazards associated with elevated CO2 concentrations.

Whether you're installing a new CO2 safety monitoring system or upgrading an existing facility to meet inspection requirements, this turnkey package provides everything necessary to begin monitoring immediately. The kit combines CryoFX's Remote CO2 Storage Safety Alarm, Auxiliary Horn Strobe Kit, and Power Monitor Unit to create multiple layers of protection for commercial environments where dependable gas monitoring is critical.

The system continuously measures ambient carbon dioxide levels and provides immediate audible and visual alerts whenever programmable alarm thresholds are exceeded. Integrated relay outputs can automatically activate ventilation equipment or communicate with building automation and fire alarm systems, while the included remote display allows personnel to monitor live CO2 concentrations from a convenient location.

To further enhance facility safety, the included Auxiliary Horn Strobe Kit expands audible and visual alarm coverage throughout larger or high-noise environments, helping ensure personnel receive immediate warning before entering hazardous areas. The Power Monitor Unit adds another layer of protection by immediately notifying personnel if electrical power to the gas monitoring system is interrupted, helping prevent unnoticed loss of monitoring capability.

Designed for restaurants, breweries, wineries, beverage carbonation systems, CO2 storage rooms, dry ice storage, laboratories, indoor agriculture, cultivation facilities, pharmaceutical operations, food processing plants, entertainment venues, and industrial gas storage, the CryoFX Complete CO2 Storage Safety Monitoring Kit provides a scalable monitoring platform that can easily expand as your facility grows.

Built around CryoFX's modular monitoring architecture, additional sensors, centralized display units, remote displays, horn strobes, and power monitoring devices can be added at any time, allowing the system to adapt to changing operational requirements without replacing the original equipment.

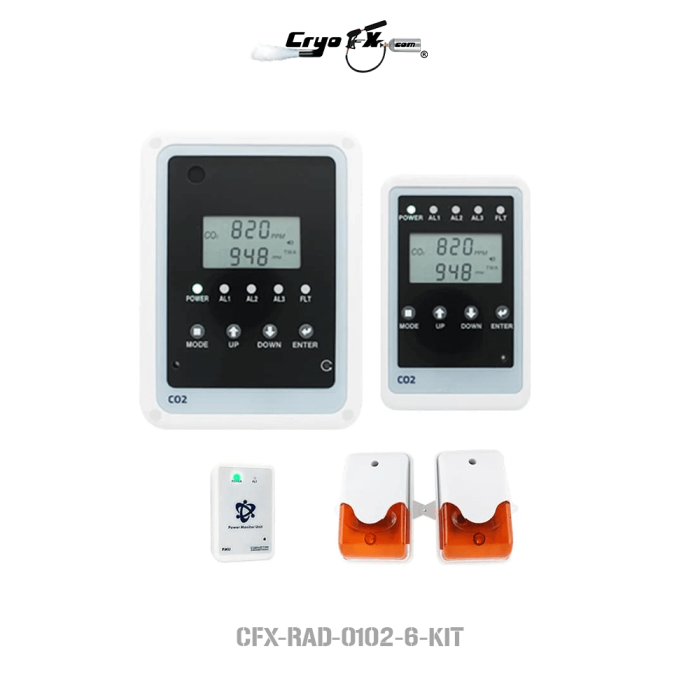

What's Included

CFX-RAD-0102-6-HS2

Remote CO2 Storage Safety Alarm with Remote Display

• Continuous CO2 monitoring
• Real-time digital CO2 concentration display
• Three user-configurable alarm levels
• Remote display and horn strobe
• Automatic ventilation relay control
• Commercial-grade CO2 leak detection

CFX-CM-HS2

Auxiliary Horn Strobe Kit

• Two high-visibility 100 candela flashing strobes
• Powerful 110 dB audible alarms
• Expands alarm coverage in large or noisy environments
• Simple Power over Ethernet (PoE) installation
• No additional power wiring required

CFX-RAD-PMU

Power Monitor Unit

• Monitors system power status
• Audible and visual notification during power loss
• More than 12 hours of battery backup operation
• Helps ensure personnel remain aware when monitoring capability is interrupted

Features

• Complete turnkey CO2 safety monitoring solution
• Continuous carbon dioxide monitoring
• Audible and visual alarm notification
• Remote display for real-time CO2 concentration monitoring
• Auxiliary horn strobes for expanded notification coverage
• Power monitoring for outage protection
• Three programmable alarm levels
• Automatic ventilation fan activation
• Building automation and fire alarm integration
• Expandable modular platform
• Disconnectable communication cables
• No communication hardwiring required
• Required safety signage included in English and Spanish
• UL Listed
• Designed to help facilities comply with OSHA, NIOSH, NFPA, IFC, NBIC, CGA G-6, EH40, AS5034, and UK Health & Safety requirements

Applications

Ideal for:

• Restaurants
• Bars
• Breweries
• Wineries
• Beverage dispensing systems
• CO2 storage rooms
• Dry ice storage facilities
• Indoor agriculture
• Cultivation facilities
• Laboratories
• Pharmaceutical facilities
• Food processing plants
• Industrial gas storage
• Entertainment venues
• Commercial compressed CO2 applications

Specifications

Gas Monitoring

• Measurement Range: 0–5% CO₂ (0–50,000 ppm)
• Alarm Levels
  • 5,000 ppm TWA
  • 5,000 ppm
  • 3% CO₂ (Configurable)
• Alarm Response Time: Less than 60 seconds
• Operating Temperature: 32°F–122°F (0°C–50°C)
• Calibration: Manual using calibration gas or factory calibration
• Sensor Life Expectancy: 15 Years

Physical Specifications

• Sensor Unit Dimensions: 6.5 × 5.0 × 2.5 inches

Electrical Specifications

• Power Supply: 110–220 VAC, 50/60 Hz to 12 VDC Power Adapter
• Optional 24VDC hardwired power
• Power Consumption: 3 Watts
• Battery Backup: 6VDC battery backup connections
• Relay Rating: Peak Current <2A @ 30VDC or 250VAC
• Relay Type: SPDT

Relay Wiring

• Red & White — Normally Open
• Blue & White — Normally Closed

Expansion Options

The CryoFX platform can be expanded at any time using compatible accessories including:

• CFX-RAD-0104 Additional Remote Display
  • Supports up to 3 remote displays
• CFX-RAD-CDU-HS1 Central Display Unit
  • Supports centralized monitoring of up to 12 sensors
• CFX-RAD-PMU Additional Power Monitor Unit
  • Monitors additional systems for power interruption
• CFX-CM-HS2 Additional Horn Strobe Kit
  • Extends audible and visual notification coverage

Compliance

Designed to help facilities meet applicable commercial safety standards including:

• OSHA
• NIOSH TWA
• NFPA
• International Fire Code (IFC)
• National Board Inspection Code (NBIC)
• CGA G-6 Carbon Dioxide Monitoring Standards
• EH40 Workplace Exposure Limits
• AS5034
• UK Health and Safety Act

Installation

The Complete CO2 Storage Safety Monitoring Kit is designed for fast installation using the included mounting hardware, communication cables, remote display, horn strobes, and plug-in power supplies. Simply mount the components, connect the supplied cables, plug the monitoring system into a standard electrical outlet, and begin continuous CO2 monitoring with enhanced alarm coverage and power-loss protection.

Why Choose the Complete Kit?

Rather than purchasing individual components separately, the CFX-RAD-0102-6-Kit delivers a fully integrated CO2 safety solution engineered to provide continuous monitoring, expanded alarm notification, and uninterrupted safety awareness. By combining gas detection, remote monitoring, auxiliary horn strobes, and power-loss notification into one complete package, facilities receive a professional, code-conscious solution that is ready to protect personnel from day one while remaining fully expandable for future growth.

Warranty

• 1 Year Manufacturer Warranty
