CO2 Leak Detector

Features

• NDIR Sensor Technology - taking 20 readings per second!
• Audible and Visual Indicator of the CO2 Leak
• Two sensitivity modes, enabling quick location of leakage
• Large OLED display
• Rechargeable Li-Ion batteries with a 12-hour battery life
• Dual calibration methods: Ambient Air or Nitrogen
• Automatic power-off at 5 minutes to conserve battery life
• Extremely Small, Compact Design
• Rugged design with protective rubber enclosure
• Heavy-duty metal clip
• IP54 housing to protect against dust, rain or splashdown
• Removable serpentine probe with thread

Specifications

• Operating Environment: 32°F~122°F (0°C~50°C), <95% RH non-condensing
• Storage: 14°F~140°F (-10°C~60°C), <99% RH non-condensing
• Sensitivity (High): 1000 ppm
• Sensitivity (Standard): 5000 ppm
• Warm-Up Time: <5 seconds at 22°C
• Response Time: < 1 second
• Probe Length: 12" (30 cm), Removable
• Measurement Range: 0~20.0%Vol CO2
• Measurement Interval: 50 ms (20x per second)
• Dimensions: 16.54 x 1.95 x 1.83 in
• Weight: 6.07 oz
• Sensor Life Expectancy: 15 years

Electrical

• Power Supply: Li-ion battery (4.2V, 1500mAh), Micro USB cable w. Wall USB charger

ABOUT CO2 STORAGE SAFETY CODES

This device will NOT meet requirements for CO2 monitoring in the NBIC, NFPA, or IFC regulations.  The accuracy of the sensor in the TIM10 is not designed for safety situations. Refer to our CO2 Safety Products page for devices that meet your needs.

Models

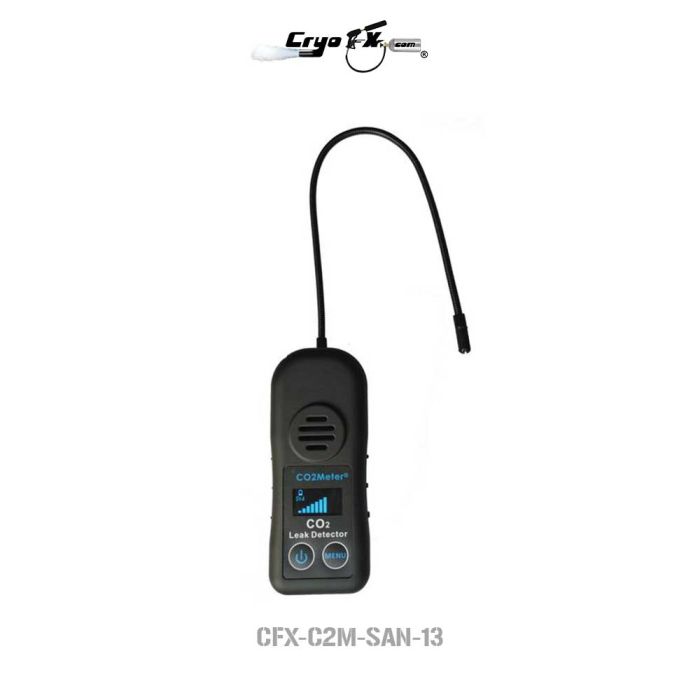

SAN-13 - CO2 Leak Detector

Warranty

• 1 year - See CryoFX® Terms and Conditions.
