CryoFX Co2 Manifolds

No more limits on single tanks or hassles with switching tanks out during the show! Expand your system with more tanks or more jets easily, just add a CryoFX Co2 Manifold! Created from high grade non-corrosive Stainless-Steel, CryoFX Co2 Manifolds will last years for continuous reliability.

In stock

SKU Co2-Manifolds

Customizable Options:

  $10.00

Description / CryoFX Co2 Manifolds

Whether your adding two or more jets to one tank or two or more tanks to one jet, CryoFX Co2 Manifolds are the way to go! Create limitless configurations with standard manifolds (shown in image) or have CryoFX create something custom just for you.

303 Stainless Steel—NPT Inlets × NPT Outlets

  • For Use With: Air, Water, Hydraulic Fluid
  • Temperature Range: -100° to 500° F
  • Maximum Pressure: 3,500 psi @ 72° F

Inlets are on both ends. Every selection comes with 2.

Outlets are ONLY on one long side. Number of outlets is optional in drop down.



316 Stainless Steel—NPT Inlets × NPT Outlets
For Use With: Air, Water, Hydraulic Fluid, Alcohol, Coolant, Cutting Oil, Deionized Water, Diesel Fuel, Fuel Oil, Gasoline, Mineral Oil, Nitrogen

  • Temperature Range: -100° to 500° F
  • Maximum Pressure:
  • Air: 1,000 psi @ 72° F
  • Water: 5,000 psi @ 72° F
  • Hydraulic Fluid: 5,000 psi @ 72° F
  • Alcohol, Coolant, Cutting Oil, Deionized Water, Diesel Fuel, Fuel Oil, Gasoline, Mineral Oil, Nitrogen: 3,000 psi @ 72° F



CryoFX Co2 manifolds are perfect for any use (except with oxygen), including but not limited to: Bars, Clubs and the like which have large requirements for co2 (or any gas/air), whether liquid or gas, and want to use one set of tanks to feed multiple locations.

CryoFX Co2 Manifolds are the necessity for large scale productions and festivals requiring multiple High pressure Co2 Cylinders to feed the Co2 Special Effects systems.

These manifolds have been used with many large scale productions throughout the world. Add a set of valves and you can switch tanks out during operation (Professional Usage Only)







Updated: 7/15/22

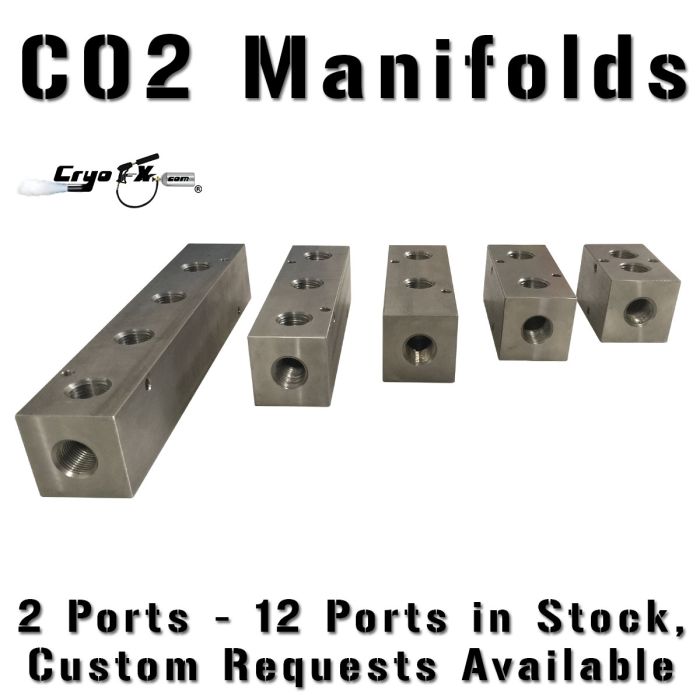

Note: Images for representation only to show the manifold look. Port sizes and setup are noted in the selections.

More Information

Weight (kgs) No
Model Stainless Steel
Length No
Height No
Width No
Size and Type No
Linkable No
Power No
Range of Motion No
Tank Height No
Tank Width No
Tank Weight No
Tank Material No
Tank Color No
Tank Style No
Tank Capacity No
Tank Valve Outlet Orientation No
Temperature Rating -110 F
LED Count No
LED Color No
LED Wattage No
Reach No
Nozzle Material No
Pressure Rating 3000 psi
Warranty 15 Day - Operational Defect
Warranty (Tank) No
