Remote Carbon Dioxide CO2 Storage Safety 3 Alarm

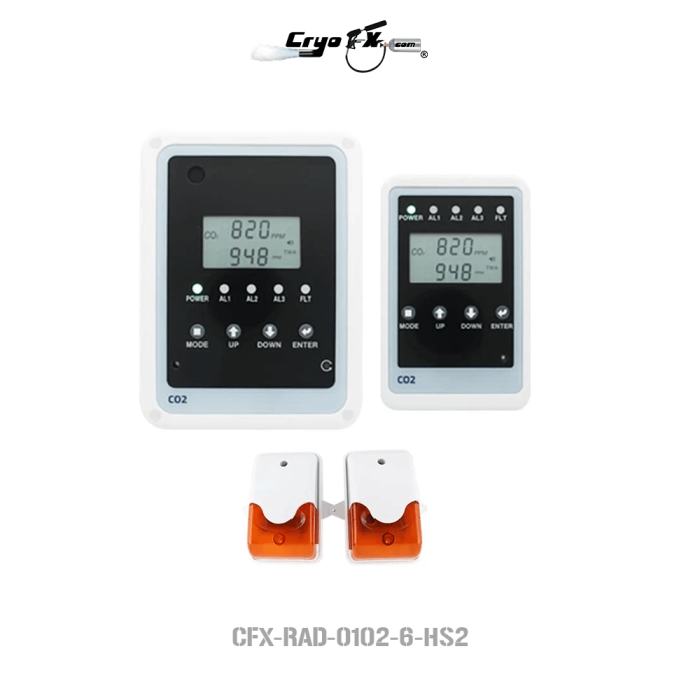

The CryoFX Remote Carbon Dioxide CO2 Storage Safety 3 Alarm (CFX-RAD-0102-6-HS2) is a professional fixed CO2 gas detection system designed to continuously monitor carbon dioxide concentrations and provide immediate notification whenever hazardous gas levels are detected. Formerly known as the CFX-RAD-0102-6, this commercial-grade safety monitor combines a highly accurate CO2 sensor with a dedicated remote display and horn strobe, allowing personnel to monitor gas concentrations from a convenient location while maintaining audible and visual alarm notification throughout the protected area.

Carbon dioxide is colorless, odorless, and can rapidly displace oxygen, creating potentially dangerous conditions in enclosed spaces. The CFX-RAD-0102-6-HS2 continuously measures CO2 concentrations and immediately alerts personnel when programmable alarm thresholds are exceeded, helping reduce the risk of overexposure while protecting employees, customers, and facility operations.

This system is ideal for restaurants, bars, breweries, wineries, beverage carbonation systems, CO2 storage rooms, dry ice storage, laboratories, indoor agriculture, cultivation facilities, food processing plants, entertainment venues, industrial facilities, and commercial applications where compressed carbon dioxide is stored, transferred, or utilized. Many jurisdictions require CO2 monitoring wherever significant quantities of carbon dioxide are present, making reliable gas detection an essential component of workplace safety and code compliance.

Unlike standard single-location monitors, the CFX-RAD-0102-6-HS2 includes a remote display unit, allowing live gas concentration readings, alarm status, and system information to be viewed away from the sensor location. This provides increased installation flexibility while improving visibility for operators, supervisors, and emergency responders.

Three programmable relays allow automatic activation of ventilation fans or communication with building automation systems and fire alarm panels during alarm conditions. The integrated 4–20 mA output further expands system integration by supporting remote monitoring and display equipment.

The modular CryoFX platform also allows your gas monitoring system to grow as your facility expands. Compatible accessories include additional remote displays, centralized display units capable of monitoring up to 12 sensors, power monitoring modules, and auxiliary horn strobe kits for larger installations.

Installation is straightforward with disconnectable cabling, included mounting hardware, and plug-in operation requiring minimal setup. For permanent commercial installations, an optional 24VDC hardwired power configuration is also available.

Important: CryoFX recommends using a surge protector with every CFX-RAD-0102-6-HS2 installation to maximize equipment protection and long-term reliability.

Features

• Professional fixed CO2 gas monitoring system
• Dedicated remote display with real-time CO2 concentration readings
• Immediate 88 dB audible alarm and high-visibility horn strobe
• Continuous carbon dioxide leak detection
• Three programmable SPDT relays
• Automatic ventilation fan control
• Fire alarm panel integration capability
• 4–20 mA output for remote monitoring systems
• Remote display installation up to 300 feet from the sensor
• Disconnectable communication cables for simplified installation
• No communication hardwiring required
• Includes required English and Spanish safety signage
• UL Listed
• Expandable modular platform
• Compatible with CryoFX Central Display Units supporting up to 12 sensors
• Supports additional remote displays and accessory modules
• Designed for commercial CO2 safety monitoring applications
• Meets OSHA, NIOSH, NFPA, IFC, NBIC, CGA G-6, EH40, AS5034, and UK Health & Safety requirements

Applications

Recommended for:

• CO2 storage rooms
• Restaurants
• Bars
• Breweries
• Wineries
• Beverage dispensing systems
• Dry ice storage facilities
• Indoor agriculture
• Cultivation facilities
• Laboratories
• Food processing plants
• Cold storage
• Entertainment venues
• Industrial gas storage
• Commercial compressed CO2 applications

Specifications

Gas Monitoring

• Measurement Range: 0–5% CO2 (0–50,000 ppm)
• Alarm Levels
  • 5,000 ppm TWA
  • 5,000 ppm
  • 3% CO2 (Configurable)
• Alarm Response Time: Less than 60 seconds
• Operating Temperature: 32°F–122°F (0–50°C)
• Calibration: Manual using calibration gas or factory calibration
• Sensor Life Expectancy: 15 Years

Physical Specifications

• Sensor Unit (SEU): 6.5 × 5.0 × 2.5 in.
• Remote Display Unit (RDU): 5.5 × 3.5 × 1.75 in.

Electrical Specifications

• Power Supply: 110–220 VAC, 50/60 Hz to 12 VDC Power Adapter
• Optional 24VDC hardwired power
• Power Consumption: 3 Watts
• Battery Backup: 6VDC battery backup connections
• Relay Rating: Peak Current <2A @ 30VDC or 250VAC
• Relay Type: SPDT
• 4–20 mA Output: Yes
• Relay Wiring
  • Red & White — Normally Open
  • Blue & White — Normally Closed

Expansion Options

Compatible Accessories

• CFX-RAD-0104 Additional Remote Display
  • Supports up to 3 remote displays
• CFX-RAD-CDU-HS1 Central Display Unit
  • Supports centralized monitoring of up to 12 sensors
• CFX-RAD-PMU Power Monitor Unit
  • Provides notification during power loss events
• CFX-CM-HS2 Auxiliary Horn Strobe Kit
  • Includes two additional horn strobes and extension cables for expanded notification coverage

Compliance

Designed to help facilities meet applicable safety standards and code requirements including:

• OSHA
• NIOSH TWA
• NFPA
• International Fire Code (IFC)
• National Board Inspection Code (NBIC)
• CGA G-6 Carbon Dioxide Monitoring and Supply Standards
• EH40 Workplace Exposure Limits
• AS5034
• UK Health and Safety Act

Installation Notes

The CFX-RAD-0102-6-HS2 is designed for quick installation using the included mounting hardware and disconnectable cables. Simply mount the sensor and remote display, connect the supplied cables, plug the system into a standard wall outlet, and the monitor is ready for operation. For hardwired installations, an optional 110VAC to 24VDC power converter is available.

For maximum protection and equipment longevity, CryoFX recommends installing the system with a surge protector.

Warranty

• 1 Year Manufacturer Warranty
