Multi-Sensor CO2 Monitoring System Package

Expandable Commercial CO2 Safety Monitoring Designed for Today's Facilities

The CryoFX Multi-Sensor CO2 Monitoring System Package is a complete commercial carbon dioxide gas detection system engineered to provide continuous monitoring of multiple CO2 storage locations while offering significantly greater flexibility than previous generation monitoring systems.

Developed as the direct replacement for the discontinued CFX-C2M-CM-7000 Multi-Sensor System, this modular platform combines the CryoFX Central Display Unit with two professional CO2 monitoring sensors, providing centralized gas concentration monitoring, audible and visual alarm notification, programmable ventilation control, and future expansion capability from a single integrated system.

Unlike the previous fixed two-sensor package, this new generation platform is fully expandable. As your facility grows, additional compatible sensors can be added without replacing the existing control equipment, allowing the monitoring system to scale alongside your operation.

Whether protecting restaurants, breweries, wineries, beverage dispensing systems, CO2 storage rooms, laboratories, indoor agriculture, dry ice storage, food processing facilities, entertainment venues, or industrial applications, this package provides professional-grade CO2 monitoring designed for demanding commercial environments.

Choose the Package That Best Fits Your Facility

Both packages include the same Central Display Unit and support future expansion.

The difference is the style of monitoring sensor included.

Option 1 — Standard Multi-Sensor Package

Includes

• 1 × CFX-RAD-CDU-HS1
  • Central Display Unit & Horn Strobe
• 2 × CFX-RAD-SEU-HS1
  • Single Sensor CO2 Monitoring Systems

This package provides the closest functional replacement to the discontinued multi-sensor system and is recommended for most commercial installations.

Ideal when the primary gas concentration display will be viewed from the centralized control location.

Option 2 — Remote Display Multi-Sensor Package

Includes

• 1 × CFX-RAD-CDU-HS1
  • Central Display Unit & Horn Strobe
• 2 × CFX-RAD-0102-6-HS2
  • Remote CO2 Storage Safety 3 Alarm Systems

This upgraded package includes remote display units installed with each monitoring sensor, allowing personnel to view real-time CO2 concentrations directly at each monitored location in addition to the centralized display.

This configuration is recommended for larger facilities, multiple equipment rooms, or installations where local gas concentration visibility is preferred.

Why Choose the CryoFX Modular System?

Compared to older fixed multi-sensor monitoring systems, the CryoFX platform provides:

• Expandable architecture supporting additional sensor locations
• Centralized real-time gas concentration monitoring
• Individual audible and visual alarm notification
• Automatic ventilation fan activation
• Fire alarm integration
• Professional commercial installation
• OSHA, NIOSH, NFPA, IFC, NBIC and CGA G-6 compliant monitoring platform
• Individual replacement components available
• Easy future expansion without replacing the entire system

This Multi Sensor Product Package Includes

Standard Package

• 1 × Central Display Unit (CFX-CDU-HS1)
• 2 × Single Sensor CO2 Monitoring Systems (CFX-SEU-HS1)
• Required mounting hardware
• Required cables
• Safety signage

Remote Display Package

• 1 × Central Display Unit (CFX-CDU-HS1)
• 2 × Remote CO2 Storage Safety Alarm Systems (CFX-0102-6-HS2)
• Required mounting hardware
• Required cables
• Safety signage

Expand Your System Anytime

One of the biggest advantages of the new CryoFX platform is scalability.

Unlike the discontinued multi-sensor system, additional compatible CO2 sensors can be added as your monitoring needs increase. Whether expanding a brewery, adding another beverage room, installing additional CO2 storage, or growing into multiple facilities, the CryoFX platform allows your investment to grow without replacing your original equipment.

Additional compatible products include:

• Single Sensor CO2 Monitoring Systems
• Remote Display CO2 Monitoring Systems
• Central Display Units
• Power Monitor Units
• Additional Remote Displays
• Additional Horn Strobes

Each Products Technical Specifications

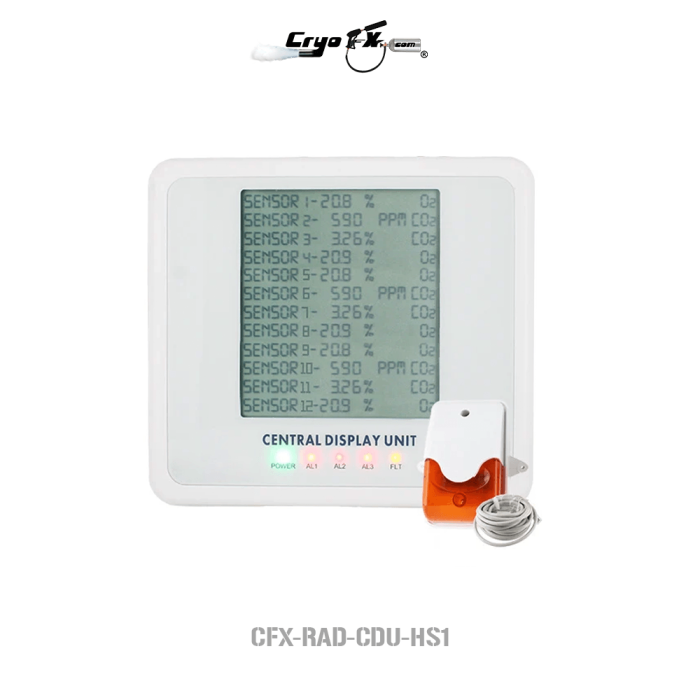

CFX-RAD-CDU-HS1

Central Display Unit and Horn Strobe

The CryoFX Central Display Unit (CFX-RAD-CDU-HS1) is the centralized command hub for commercial CO2 and O2 gas safety monitoring systems, providing real-time visibility of gas concentrations, alarm conditions, and historical trends from a single easy-to-read LCD display. Designed for facilities where carbon dioxide or oxygen monitoring is critical, the CDU enables personnel to quickly identify hazardous conditions, monitor multiple sensor locations, and respond immediately to potential gas leaks or oxygen deficiency events.

Ideal for CO2 storage rooms, beverage dispensing systems, breweries, wineries, laboratories, indoor agriculture, restaurants, industrial facilities, entertainment venues, and commercial applications, the Central Display Unit consolidates data from compatible CryoFX gas detection sensors into one centralized monitoring station. Audible and visual alarm indicators immediately notify personnel when programmable alarm thresholds are reached, while integrated relays allow automatic activation of ventilation equipment or communication with building fire alarm systems.

The CDU also plays an important role in helping facilities maintain compliance with applicable OSHA, NIOSH, NFPA, IFC, and NBIC safety guidelines by providing centralized monitoring, alarm notification, and continuous display of gas detection information across multiple monitoring locations.

When paired with the CFX-RAD-0102-6-HS2 or CFX-RAD-0002-ZR-HS2 sensor systems, the CDU functions as the master controller for your gas detection network, collecting real-time readings from connected sensors while displaying alarm status and system conditions from a single dashboard. As your facility grows, the system can easily expand to accommodate additional monitoring locations without replacing the entire control system.

Whether you're designing a new CO2 safety monitoring system or expanding an existing installation, the CryoFX Central Display Unit provides a scalable, professional-grade solution engineered for reliability, code compliance, and long-term facility safety.

To begin your system, simply pair the CDU with compatible CryoFX CO2 or O2 sensor units, or contact a CryoFX gas safety specialist to configure a complete monitoring solution tailored to your application.

Features

• Centralized display and monitoring for compatible CO2 and O2 gas safety alarms
• Supports connection of up to 12 compatible gas sensor units
• Real-time display of gas concentrations and system status
• Historical alarm and sensor trend monitoring
• Large LCD display for quick visibility
• Integrated audible and visual alarm indicators
• Three programmable relays
• Relays can activate ventilation systems or communicate with building fire alarm panels
• IP54 rated enclosure for commercial installations
• Standard RJ45 sensor connections
• Expandable modular architecture for future system growth
• Designed for commercial CO2 storage and oxygen monitoring applications
• Meets NFPA, IFC, NBIC, OSHA, and NIOSH safety requirements
• Complies with applicable local inspection codes and commercial installation requirements

Applications

The CryoFX Central Display Unit is commonly used in:

• CO2 storage rooms
• Beverage carbonation systems
• Restaurants and bars
• Breweries and wineries
• Indoor agriculture and grow facilities
• Laboratories
• Food and beverage production facilities
• Cold storage facilities
• Industrial processing
• Entertainment venues
• Commercial facilities utilizing compressed CO2 or oxygen monitoring systems

Specifications

Gas Monitoring

• CO2 Measurement Range: 0–5% (0–50,000 ppm)
• O2 Measurement Range: 0–25%
• CO2 Alarm Levels: 5,000 ppm TWA, 5,000 ppm STEL, 3% (user configurable)
• O2 Alarm Levels: 19.5%, 16.5%, 12%
• Measurement Interval: Every 2 seconds (0.5 Hz)
• Sensor Coverage: Approximately 1,500 sq. ft. per compatible sensor

Electrical & Mechanical Specifications

• Power Supply: 100–240 VAC, 50/60 Hz to 12 VDC power adapter
• Operating Voltage: 9–32 VDC
• Power Consumption: 3 Watts
• Connections: Standard RJ45
• Audible Alarm Output: 88 dB
• Relay Configuration: Three SPDT relays
• Relay Rating: Peak current <2A @ 30 VDC or 250 VAC
• Relay Connection: Screw terminal connection
• Enclosure Rating: IP54
• Operating Temperature: 32°F–122°F (0°C–50°C)

Compliance

The CryoFX Central Display Unit is designed to support commercial gas safety installations requiring compliance with applicable industry regulations and standards, including:

• OSHA requirements
• NIOSH TWA standards
• NFPA guidelines
• International Fire Code (IFC)
• National Board Inspection Code (NBIC)
• Local fire marshal and inspection authority requirements

Warranty

• Manufacturer Warranty: 1 Year

CFX-RAD-SEU-HS1

Single Sensor CO2 Monitoring System and Horn Strobe

The CryoFX Single Sensor CO2 Monitoring System and Horn Strobe (CFX-RAD-SEU-HS1) is a professional-grade carbon dioxide gas monitoring system designed to provide continuous protection in facilities where compressed CO2 is stored or utilized. Combining a reliable CO2 storage safety alarm sensor with a dedicated horn strobe, this compact monitoring solution delivers immediate audible and visual alerts whenever elevated CO2 concentrations are detected, helping protect employees, customers, and facility personnel from potentially hazardous gas conditions.

Ideal for restaurants, bars, breweries, wineries, beverage dispensing systems, CO2 storage rooms, laboratories, indoor agriculture, food processing facilities, entertainment venues, and industrial applications, the CFX-RAD-SEU-HS1 continuously monitors carbon dioxide levels while providing dependable alarm notification when programmable safety thresholds are exceeded. The integrated relay outputs can automatically activate ventilation systems or communicate with building automation and fire alarm equipment, allowing facilities to respond quickly and effectively during a gas leak.

For centralized monitoring and real-time gas concentration display, the CFX-RAD-SEU-HS1 must be paired with the CryoFX Central Display Unit (CFX-RAD-CDU-HS1). The Central Display Unit acts as the system's command center, displaying live gas readings, alarm status, and connected sensor information from multiple monitoring locations throughout your facility.

Unlike traditional fixed monitoring systems, the CryoFX platform offers a modular and expandable design, allowing additional sensor units to be added as your operation grows. Remote communication distances of up to 300 feet provide flexible installation options while disconnectable cabling eliminates unnecessary hardwiring, simplifying installation and future maintenance.

Every system includes the required safety signage in both English and Spanish, helping facilities meet inspection requirements while providing clear hazard communication for employees and visitors. The CFX-RAD-SEU-HS1 is engineered to satisfy the stringent monitoring requirements established by OSHA, NIOSH, NFPA, IFC, NBIC, CGA G-6, EH40, AS5034, and the UK Health and Safety Act, making it suitable for commercial installations across a wide variety of industries.

Installation is straightforward. Simply mount both units using the included mounting hardware, connect the supplied cables, plug the monitoring unit into a standard electrical outlet, and the system is ready for operation. For facilities requiring permanent hardwired installation, an optional 110VAC to 24VDC power converter is available.

Important: The CFX-RAD-SEU-HS1 requires a compatible CryoFX Central Display Unit (CFX-RAD-CDU-HS1) for real-time gas concentration display and centralized monitoring.

Features

• Professional single sensor CO2 monitoring system
• Immediate 88 dB audible alarm with high-visibility horn strobe
• Continuous carbon dioxide monitoring
• Compatible with the CryoFX Central Display Unit (CDU-HS1)
• Three programmable SPDT relays
• Automatic ventilation fan activation capability
• Programmable CO2 alarm thresholds
• Supports remote installation up to 300 feet
• Disconnectable cables simplify installation and servicing
• No hardwired communication wiring required
• Includes required safety signage in English and Spanish
• UL Listed
• Expandable modular monitoring platform
• Designed for commercial CO2 safety applications
• Helps facilities comply with OSHA, NIOSH, NFPA, IFC, NBIC, CGA G-6, EH40, and AS5034 requirements

Applications

Recommended for:

• CO2 storage rooms
• Beverage carbonation systems
• Restaurants
• Bars
• Breweries
• Wineries
• Indoor agriculture
• Food processing facilities
• Laboratories
• Entertainment venues
• Industrial gas storage
• Commercial facilities utilizing compressed carbon dioxide

Specifications

Gas Monitoring

• Measurement Range: 0–5% CO2 (0–50,000 ppm)
• Alarm Levels:
  • 5,000 ppm TWA
  • 5,000 ppm
  • 3% CO2 (Configurable)
• Alarm Response Time: Less than 60 seconds
• Operating Temperature: 32°F–122°F (0–50°C)
• Calibration: Manual using calibration gas or factory calibration
• Sensor Life Expectancy: 15 Years

Physical Specifications

• Dimensions: 6.5 × 5.0 × 2.5 inches

Electrical Specifications

• Power Supply: 110–220 VAC, 50/60 Hz to 12 VDC Power Adapter
• Optional 24VDC hardwired power
• Power Consumption: 3 Watts
• Battery Backup: 6VDC battery backup connections
• Relay Rating: Peak Current <2A @ 30VDC or 250VAC
• Relay Type: SPDT
• Relay Wiring
  • Red & White — Normally Open
  • Blue & White — Normally Closed

Compliance

Designed to help facilities meet applicable safety standards including:

• OSHA
• NIOSH TWA
• NFPA
• International Fire Code (IFC)
• National Board Inspection Code (NBIC)
• CGA G-6 Carbon Dioxide Monitoring Standards
• EH40 Workplace Exposure Limits
• AS5034
• UK Health and Safety Act

Warranty

• 1 Year Manufacturer Warranty

CFX-RAD-0102-6-HS2

Remote Carbon Dioxide CO2 Storage Safety 3 Alarm

The CryoFX Remote Carbon Dioxide CO2 Storage Safety 3 Alarm (CFX-RAD-0102-6-HS2) is a professional fixed CO2 gas detection system designed to continuously monitor carbon dioxide concentrations and provide immediate notification whenever hazardous gas levels are detected. Formerly known as the CFX-RAD-0102-6, this commercial-grade safety monitor combines a highly accurate CO2 sensor with a dedicated remote display and horn strobe, allowing personnel to monitor gas concentrations from a convenient location while maintaining audible and visual alarm notification throughout the protected area.

Carbon dioxide is colorless, odorless, and can rapidly displace oxygen, creating potentially dangerous conditions in enclosed spaces. The CFX-RAD-0102-6-HS2 continuously measures CO2 concentrations and immediately alerts personnel when programmable alarm thresholds are exceeded, helping reduce the risk of overexposure while protecting employees, customers, and facility operations.

This system is ideal for restaurants, bars, breweries, wineries, beverage carbonation systems, CO2 storage rooms, dry ice storage, laboratories, indoor agriculture, cultivation facilities, food processing plants, entertainment venues, industrial facilities, and commercial applications where compressed carbon dioxide is stored, transferred, or utilized. Many jurisdictions require CO2 monitoring wherever significant quantities of carbon dioxide are present, making reliable gas detection an essential component of workplace safety and code compliance.

Unlike standard single-location monitors, the CFX-RAD-0102-6-HS2 includes a remote display unit, allowing live gas concentration readings, alarm status, and system information to be viewed away from the sensor location. This provides increased installation flexibility while improving visibility for operators, supervisors, and emergency responders.

Three programmable relays allow automatic activation of ventilation fans or communication with building automation systems and fire alarm panels during alarm conditions. The integrated 4–20 mA output further expands system integration by supporting remote monitoring and display equipment.

The modular CryoFX platform also allows your gas monitoring system to grow as your facility expands. Compatible accessories include additional remote displays, centralized display units capable of monitoring up to 12 sensors, power monitoring modules, and auxiliary horn strobe kits for larger installations.

Installation is straightforward with disconnectable cabling, included mounting hardware, and plug-in operation requiring minimal setup. For permanent commercial installations, an optional 24VDC hardwired power configuration is also available.

Important: CryoFX recommends using a surge protector with every CFX-RAD-0102-6-HS2 installation to maximize equipment protection and long-term reliability.

Features

• Professional fixed CO2 gas monitoring system
• Dedicated remote display with real-time CO2 concentration readings
• Immediate 88 dB audible alarm and high-visibility horn strobe
• Continuous carbon dioxide leak detection
• Three programmable SPDT relays
• Automatic ventilation fan control
• Fire alarm panel integration capability
• 4–20 mA output for remote monitoring systems
• Remote display installation up to 300 feet from the sensor
• Disconnectable communication cables for simplified installation
• No communication hardwiring required
• Includes required English and Spanish safety signage
• UL Listed
• Expandable modular platform
• Compatible with CryoFX Central Display Units supporting up to 12 sensors
• Supports additional remote displays and accessory modules
• Designed for commercial CO2 safety monitoring applications
• Meets OSHA, NIOSH, NFPA, IFC, NBIC, CGA G-6, EH40, AS5034, and UK Health & Safety requirements

Applications

Recommended for:

• CO2 storage rooms
• Restaurants
• Bars
• Breweries
• Wineries
• Beverage dispensing systems
• Dry ice storage facilities
• Indoor agriculture
• Cultivation facilities
• Laboratories
• Food processing plants
• Cold storage
• Entertainment venues
• Industrial gas storage
• Commercial compressed CO2 applications

Specifications

Gas Monitoring

• Measurement Range: 0–5% CO2 (0–50,000 ppm)
• Alarm Levels
  • 5,000 ppm TWA
  • 5,000 ppm
  • 3% CO2 (Configurable)
• Alarm Response Time: Less than 60 seconds
• Operating Temperature: 32°F–122°F (0–50°C)
• Calibration: Manual using calibration gas or factory calibration
• Sensor Life Expectancy: 15 Years

Physical Specifications

• Sensor Unit (SEU): 6.5 × 5.0 × 2.5 in.
• Remote Display Unit (RDU): 5.5 × 3.5 × 1.75 in.

Electrical Specifications

• Power Supply: 110–220 VAC, 50/60 Hz to 12 VDC Power Adapter
• Optional 24VDC hardwired power
• Power Consumption: 3 Watts
• Battery Backup: 6VDC battery backup connections
• Relay Rating: Peak Current <2A @ 30VDC or 250VAC
• Relay Type: SPDT
• 4–20 mA Output: Yes
• Relay Wiring
  • Red & White — Normally Open
  • Blue & White — Normally Closed

Compliance

Designed to help facilities meet applicable safety standards and code requirements including:

• OSHA
• NIOSH TWA
• NFPA
• International Fire Code (IFC)
• National Board Inspection Code (NBIC)
• CGA G-6 Carbon Dioxide Monitoring and Supply Standards
• EH40 Workplace Exposure Limits
• AS5034
• UK Health and Safety Act

Installation Notes

The CFX-RAD-0102-6-HS2 is designed for quick installation using the included mounting hardware and disconnectable cables. Simply mount the sensor and remote display, connect the supplied cables, plug the system into a standard wall outlet, and the monitor is ready for operation. For hardwired installations, an optional 110VAC to 24VDC power converter is available.

For maximum protection and equipment longevity, CryoFX recommends installing the system with a surge protector.

Warranty

• 1 Year Manufacturer Warranty
