Co2 Valve Jet - Co2 Jet

CryoFX Co2 Valve Jet DMX 512 is the ultimate must have when considering a DMX style CO2 Jet that can mount in tight places or hidden away from scenery and front of house view.

Taking a standard Co2 Jet and adding DMX capabilities with the option to assign any one of 512 DMX channels, this Co2 Valve Jet is most widely used where a professional heavy duty DMX only jet is of importance.

Constructed of a thick metal casing, the Co2 Jet DMX 512 will last through rugged conditions such as tours, mobile applications, constant setup / strike and similar. CryoFX Co2 Valve Jet DMX 512 has the capability to be linked to other units via DMX for simultaneous control of multiple jets.

It also offers the option to link to other units via powercon in/out connectors for use of one plug for multiple units (Co2 Jet comes stock with power plug connected to one powercon connector. Additional powercon connector is included in package for users option to daisy chain units.)

The nozzle may be adjusted to release CO2 clouds at an angle if so desired by adjusting a fitting at the base of the nozzle.

This Cryo Valve Jet comes in 110vAC and 220vAC with ability to be installed on truss or used on floor.

Built to withstand rugged conditions, the CO2 Jet DMX 512 reaches heights of 35-55 feet (10.6-16.76 meters) [depending on atmospheric conditions and setup] and weighs only 20 Lbs (9.0Kg).

With easy to follow instructions, included manual and high pressure hose, and quick setup time, you will be ready to use this CO2 Jet in minutes, pending you already have CO2. Compatible with both high and low pressure systems. 1 year manufacture warranty. CO2 is not included.

This package comes with the following:

• Co2 Valve Jet DMX 512 control unit
• Co2 Valve with attached fitting
• High Pressure Hose with attached fitting
• Brass Co2 fitting (to connect hose to CO2 Tank) (Tank NOT included)
• Power Cable
• 3 Pin or 5 Pin DMX capability
• PowerCon Connection In/Out
• Digital Display for DMX Setting
• DMX Mode or Power On/Off Mode for external control
• Manual, Safety Guidelines, and FAQ (Frequently Asked Questions) as QR Code on box.


The hose and CO2 Jet listed here have fittings already installed so you can easily disconnect the hose from the CO2 Jet when not in use. Electricity is required for this package.

Simply connect the hose to the CO2 Jet and the other end of the hose to your CO2 tank. Then connect your DMX cable to the CO2 Jet DMX “In” jack and the other end to any DMX 512 controller, then assign the channel of DMX you want the jet to be on, and your ready to go!

This CO2 Jet shoots a 35-55 feet (10.6-16.76 meters) [depending on atmospheric conditions and setup] high stream of CO2 which is about 4’-6’ feet wide, of course, depending on humidity level and room temperature!

Adjust the angle of the nozzle to spray in any position up to 180 degrees. Once nozzle is in position, tighten lock nut down and nozzle is secured from undesired moving during use. These CO2 Jets are used in stage productions, nightclubs, bars, live performances, concerts, haunted houses, special events and much more.

These jets are similar to a fog machine but do not linger like fog, leave a residue or weird smell, or set off fire alarms. They also significantly cool down an area very quickly. The CO2 dissipates immediately after coming out of the jet so the cloud vanishes in seconds after the user stops activation.

Hose length is customizable. If you desire a custom length hose or have any questions, please contact us:

Product Data Sheet:

https://cryofx.com/media/pdf/CryoFX-Co2-Valve-Jet-min.pdf

Regarding nozzle selection options, the following details apply:

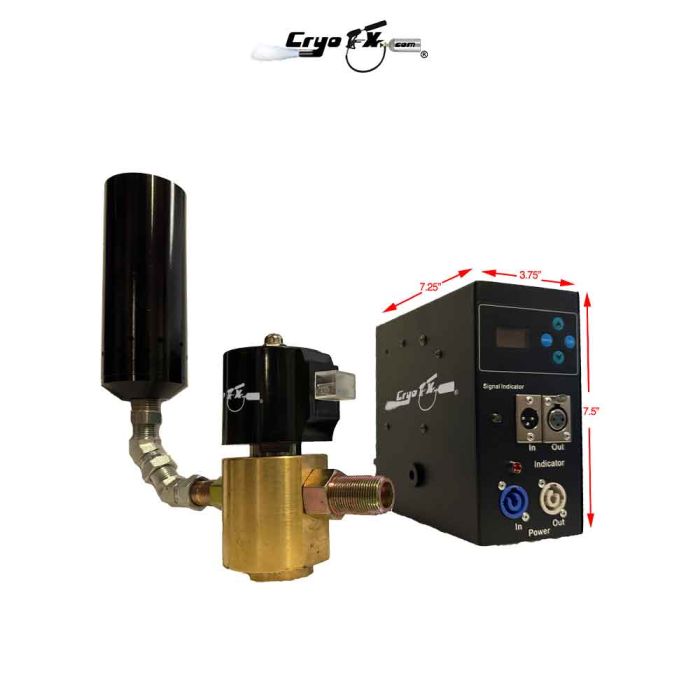

1 Nozzle: Single nozzle co2 jet as shown in the photos.

2 Nozzles: Will be a dual nozzle co2 jet with 2 nozzles where each one can rotate in numerous directions via the two 45º swivel fittings.

3 Nozzles: Will be a triple nozzle co2 jet with 3 nozzles where each one can rotate in numerous directions via the two 45º swivel fittings.

Note: the 2 and 3 nozzle options will have a thinner aluminum nozzle versus the steel nozzle shown in the and sent with the single nozzle option.

Fitting configuration how to video here: https://CryoFX.com/fittings

Note: The input fitting can be adjusted to accomodate different setups and existing hoses you may have. Use the fitting selector option to customize the input fitting to that of your needs.
