CO2 Jet DMX 512

CryoFX CO2 Jet DMX 512 is the ultimate must have when considering a DMX style CO2 Jet. This professional grade Co2 Jet allows you to position the nozzle to any desired angle up to 180 degrees. Used on stages or mounted on trusses, the Co2 Jet DMX 512 will not let you down!

In stock

SKU CRYOFX-CO2-JET-DMX-512

Customizable Options:

  $789.00

Description / CO2 Jet DMX 512

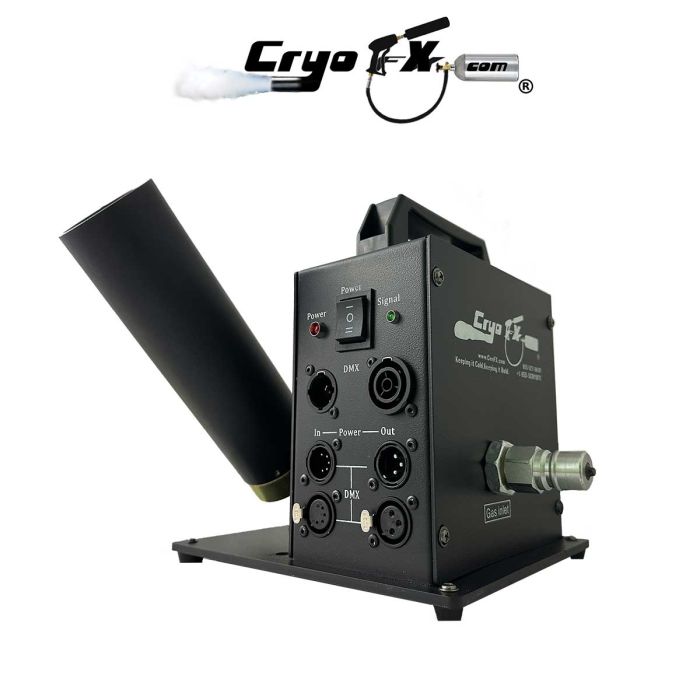

CryoFX CO2 Jet DMX 512 is the ultimate must have when considering a DMX style CO2 Jet. Taking a standard Co2 Jet and adding DMX capabilities with the option to assign any one of 512 DMX channels, this Co2 Jet is most widely used where a professional heavy duty DMX only jet is of importance. Constructed of a thick metal casing, the Co2 Jet DMX 512 will last through rugged conditions such as tours, mobile applications, and similar. CryoFX CO2 Jet DMX 512 has the capability to be linked to other units via DMX for simultaneous control of multiple jets.

It also offers the option to link to other units via true1 powecon in/out connectors for use of one plug for multiple units (Co2 Jet comes stock with power plug connected to one true1 powecon connector. Additional true1 powecon connector is included in package for users option to daisy chain units.) Included on jet: 3 pin and 5 pin DMX connections. The nozzle may be adjusted to release CO2 clouds at an angle if so desired by adjusting a fitting at the base of the nozzle. This Cryo Jet comes in 110vAC and 220vAC with ability to be installed on truss or used on floor.

Built to withstand rugged conditions, the CO2 Jet DMX 512 reaches heights of 25-35 feet (7.6-10.6 meters) and weighs only 18 Lbs (8.1Kg).

With easy to follow instructions, included manual and high pressure hose, and quick setup time, you will be ready to use this CO2 Jet in minutes, pending you already have CO2.

Compatible with both high and low pressure systems. 1 year manufacture warranty. CO2 is not included.

This package comes with the following:

• CO2 Jet DMX 512 unit with attached quick connect fitting and base plate for mounting
• High Pressure Hose with attached quick connect fitting
• Brass fitting (to connect hose to CO2 Tank) (Tank NOT included)
• Power Cable
• 3 Pin DMX Cable (15 foot long)
• Manual, Safety Guidelines, and FAQ (Frequently Asked Questions) via QR code on boxes.


The hose and CO2 Jet listed here have quick connect fittings already installed so you can easily disconnect the hose from the CO2 Jet when not in use. Electricity is required for this package. Simply connect the hose to the CO2 Jet and the other end of the hose to your CO2 tank. Then connect your DMX cable to the CO2 Jet DMX “In” jack and the other end to any DMX 512 controller, then assign the channel of DMX you want the jet to be on, and your ready to go! This CO2 Jet shoots a 25’ - 35’ foot (7.6-10.6 meters) high stream of CO2 which is about 4’-6’ feet wide, of course, depending on humidity level and room temperature! Adjust the angle of the nozzle to spray in any position up to 180 degrees. Once nozzle is in position, tighten lock nut down and nozzle is secured from undesired moving during use. These CO2 Jets are used in stage productions, nightclubs, bars, live performances, concerts, haunted houses, special events and much more. They are similar to a fog machine but do not linger like fog, leave a residue or weird smell, or set off fire alarms. They also significantly cool down an area very quickly. The CO2 dissipates immediately after coming out of the gun so the cloud vanishes in seconds after the user stops activation.

Hose length is customizable. If you desire a custom length hose or have any questions, please contact us:



Regarding nozzle selection options, the following details apply:

  • 1 Nozzle: Single nozzle co2 jet as shown in the photos.
  • 2 Nozzles: Will be a dual nozzle co2 jet with 2 nozzles where each one can rotate in numerous directions via the two 45º swivel fittings.
  • 3 Nozzles: Will be a triple nozzle co2 jet with 3 nozzles where each one can rotate in numerous directions via the two 45º swivel fittings.
  • Fittings assembly help: https://CryoFX.com/fittings

Note: the 2 and 3 nozzle options will have a thinner aluminum nozzle versus the steel nozzle shown in the and sent with the single nozzle option.



Please see this video showing the 45º swivel fittings for the nozzles: https://www.youtube.com/watch?v=YRwXAYEYAek

More Information

Weight (kgs) 8.1
Voltage 110 VAC 50/60HZ (220 VAC Available)
Model Mounted Jet
Length 7 Inches (17.7cm)
Height 10 Inches (25.4cm)
Width 10 Inches (25.4cm)
Size and Type No
Linkable Yes, via XLR Cable, Yes, via Speakon Connectors(Linkable Power)
Power 100 Watts
Range of Motion No
Tank Height No
Tank Width No
Tank Weight No
Tank Material No
Tank Color No
Tank Style No
Tank Capacity No
Tank Valve Outlet Orientation No
Temperature Rating No
LED Count No
LED Color No
LED Wattage No
Reach 25'-35' feet (7.6-10.6 meters)
Nozzle Material No
Pressure Rating Up to 1100 psi (75.84 bar)
Warranty 1 Year - Operational Defect
Warranty (Tank) No
Display Product Options In Block after Info Column
Hose Length Pre-Selected or Custom Lengths available
