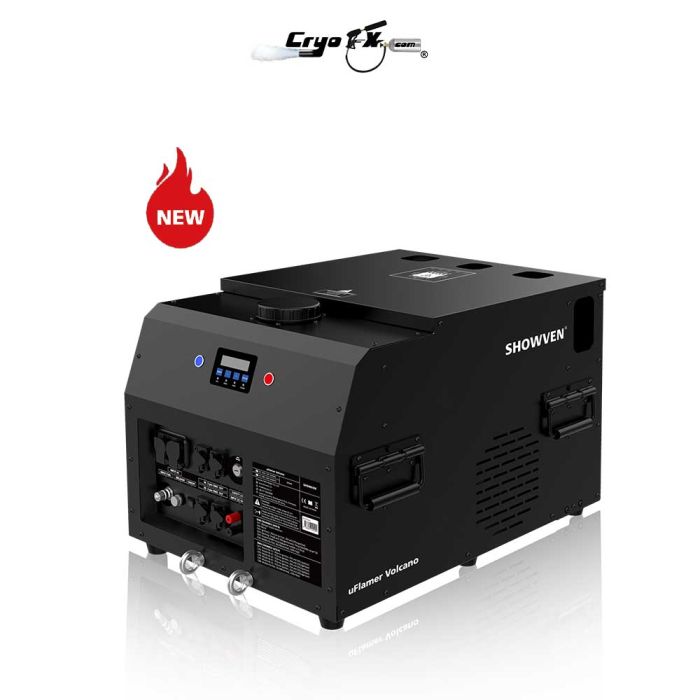

Showven uFlamer Volcano 5 Output DMX Flame Machine is perfect for stages and event looking for a DMX Flame Machine / DMX 512 Pyro Machine.

The Showven uFlamer Volcano - Shoven Volcano 5 Head Fire Machine, also known as a High Output Showven Pyro Machine has many features for professional stages.

Features and advantages for Showven uFlamer Volcano

  • High end 5-heads liquid flamer, flames up to 8-10m
  • 25L built-in fuel tank and pumping system
  • Automatic filling station optional
  • Electronic oil level display
  • Integrated valve block design and reliable jet valve
  • Stainless steel housing and rain-proof design
  • Safety switch, easy switchable from user mode and test mode
  • Intelligent electronic control alarming system

Specifications for Sparkular Flame / Pyro Machine:

  • DIMENSION: 630x450x400mm
  • HOUSING MATERIAL: 304 STAINLESS STEEL
  • WEIGHT:48Kg
  • WORK POWER: 2000W
  • INPUT:100-120V & 200-240V, 50/60Hz
  • FLAMER HEIGHT: 8-10m
  • FLAME ANGLES: 5 directions
  • FUEL: ISOPAR G
  • FUEL TANK CAPACITY: 25L
  • FUEL CONSUMPTION: 60mL/s per nozzle
  • WORK TEMP.: -20 ℃ to 50 ℃
  • INTERFACE: SEETRONIC 3-PIN & 5-PIN XLR
  • NEUTRIK PowerCON TRUE1
  • IGNITION: High voltage electron ignition
  • CONTROL: DMX
  • WATER PROOF LEVEL: IPX3

_____________________________________________________________________________________

Showven Technologies Co., Ltd.

Δ Foreword

Thanks for choosing SHOWVEN uFlamer Volcano, we wish it will bring you lots of exciting moments.
Please read following manual carefully and completely before operating this product. Operate according
to instructions is very important for safety, and can elongate the service life of the machine.
Strictly follow the instruction in the manual when operate uFlamer Volcano. If you have any doubts,
please contact SHOWVEN technologies Co., Ltd by [email protected].
We assume the person who use or come in contact with the device are familiar with how the device
should be handled. This includes proper use, maintenance and repair of the machine as defined in this
user manual.

Δ Warning
\ This product is only suitable for qualified or skilled operators who has experience with the technology
of the device and is particularly informed about the types of fuel used by the device.
\ Unauthorized repair are prohibited, it may cause serious incident
\ Make sure power supply in consistent with the rated voltage of the equipment, and the socket must
well grounded. Unplug and turn off the machine when not use
\ Before connect the power cable, communication DMX cable should well connected and ensure the
command keep at firing OFF status. And safety lock of uFlamer Volcano stay at TEST MODE.
\ Before power on the machine, please check carefully the safety distance and make sure it meets the
requirements in this manual.
\ The device can only be placed horizontally.
\ After turning on the device, no person allows to stay in the danger area. Ensure all persons that are
part of the show be informed about the safety distance, risks and functions of the device
\ Always have a CO2 fire extinguisher and an extinguishing blanket in case of needed
\ If there be any doubt as to the safety operation of the device in any circumstances, the device should
be taken out of service immediately. Be sure the device is in good operating condition before use. If fail
to fire correctly, immediately shut down and check it accordingly.
\ Be sure to use high quality flame fluid, otherwise, it is easily leads to failure or danger. Be careful when
refill the flame fluid tank. Please keep flame fluid away from heat source, sparks, fire or other possibility
of ignition. Do not smoke!
\ The operator responsible for the control of uFlamer Volcano must always have a clear view of the
device, so that he/she can stop the show immediately when there is danger. The main AC power
switch should near operator. So that operator can turn off the power of all devices in case of abnormal
\ The device shall not be altered and applied to other use purpose

Δ Disclaimers
SHOWVEN technologies Co., Ltd excludes liability for unsafe situations, accidents and damages resulting
from:
1. Ignoring warnings or regulations as shown on flamer or this manual.
2. Use for other applications or circumstances other than those indicated herein.
3. Changes to the flamer, including use of non-original spare parts.
4. Removed safety cover without authorization from SHOWVEN.
5. Use this machine by unqualified or untrained personnel.
6. Improper use of machine.

Δ Functional Characteristics
\ 5-heads liquid flamer, independent control of each head, flames up to 10m
\ Internal pump, plug and play system
\ 25L built-in stainless steel fuel tank, real-time fuel level display, support automatic refueling station
\ Safety switch key safer for service
\ Integrated valve block design, premium and independent jet valve, safe and reliable
\ Reinforced stainless steel housing
\ Customized water-proof igniter and rain-proof structure design, can be used in rainy day
\ DMX control, with both 3-pin and 5-pin XLR port
\ Compatible with 9-60V pyro signal

Δ Technical Specifications
\ DIMENSION: 630 x 450x 400mm
\ HOUSING MATERIAL: 304 STAINLESS STEEL
\ WEIGHT: 48Kg
\ WORK POWER: 2000W
\ INPUT:100-120V & 200-240V, 50/60Hz
\ FLAMER HEIGHT: 8-10m
\ FLAME ANGLES: 5 directions
\ FUEL: ISOPAR, ISOPROPANOL
\ FUEL TANK CAPACITY: 25L
\ FUEL CONSUMPTION: 60ml/s(M), 30ml/s(L), 15ml/s(EL) per nozzle
\ WORK TEMP.: -20 °C to 50 °C
\ INTERFACE: SEETRONIC 3-PIN & 5-PIN XLR
NEUTRIK PowerCON TRUE1
\ IGNITION: High voltage electron ignition
\ CONTROL: DMX, 9-60V PYRO SIGNAL
\ USAGE IN RAIN: YES

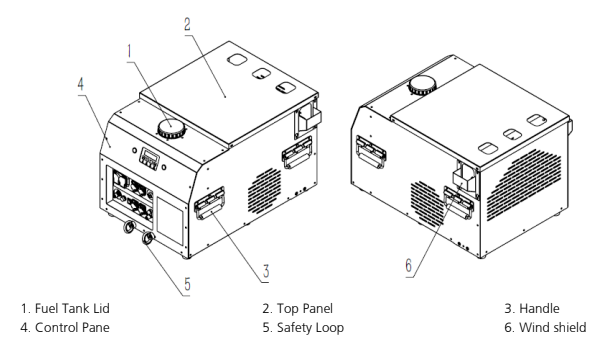

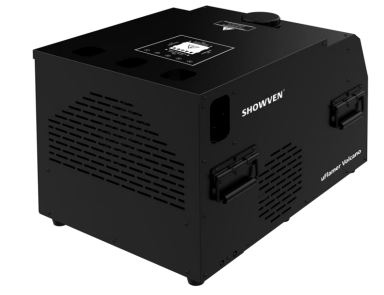

Δ Structure of uFlamer Volcano

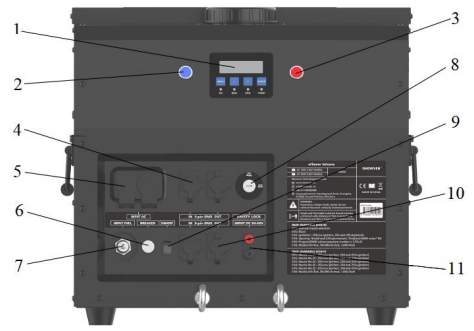

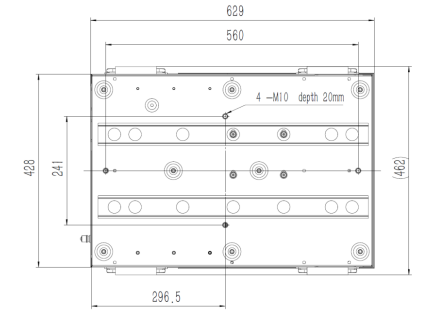

Overview of bottom panel

Overview of Control Panel

1. LCD screen operate panel
2. Pressure indicator (Blue LED)
3. Safety indicator (Red LED)
4. 5-pin DMX socket (5-PIN XLR IN can charge for wireless DMX pen through pin1 and 4, pin4 with
DC5V power supply)
5. 110V/220V Power Socket
6. Auto-reset Fuse
7. Fuel Input Quick Coupler (G1/4, ISO7241B) (NOTE: external fuel input pressure < 0.8MPa)
8. Safety Lock
9. ON/OFF Switch
10. 3-pin XLR Socket
11. DC 9V-60V pyro igniter signal port

Δ Operation Panel

1. LED Display Area:
RX:
Radio receiving (reserved)
DMX:
DMX signal. Flash means DMX signal available, otherwise no DMX signal
ERR:
Light on when there is an error
PUMP:
Light on when pump is running
2. Button Functions:
MENU:
Switch interface to setup parameter;
+:
Parameter Up
-:
Parameter Down
ENTER:
Confirm and save parameters (screen will flash when parameters saved)
Note:
screen display will switch to main interface if not press button in 10s.

3. Welcome Interface:

First Line:
Product model and software version
Second Line: Equipment series number

4. Main Interface:

First Line
DMX:
DMX address 1(value from 1-512);
M:
Channel Mode 6CH-P
6CH-P:
professional channel mode;
6CH-N:
normal channel mode
6CH-S:
safety channel mode

Second Line
P:
Pressure Value 100 (100=10bar)
L:
Liquid level 50%

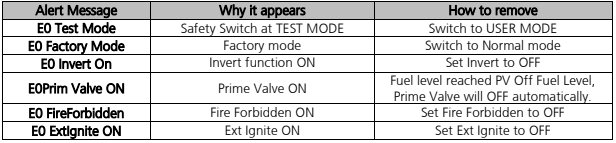

5. Alert Message:

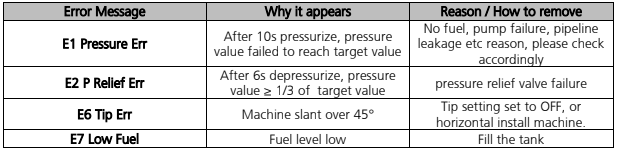

6. Error Message:

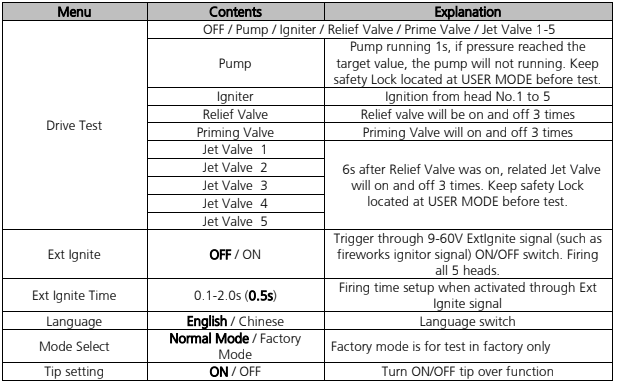

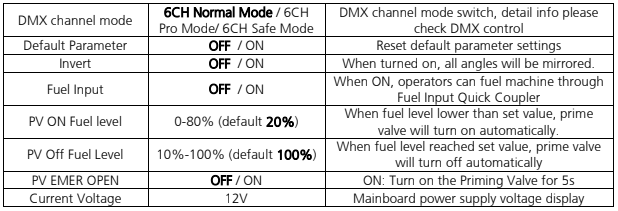

8. Advanced Interface:
Press “MENU” 3s enters advanced interface, press “MENU” to switch interface, press “MENU” 3s can
back to main interface. The value in bold character is default value.

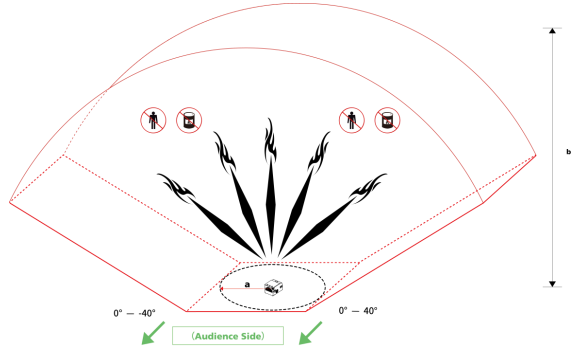

Δ Firing Angles:

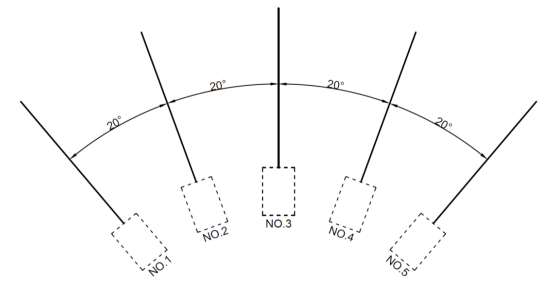

Below schematic shows 5 firing angles of uFlamer Volcano from Audience Side view.

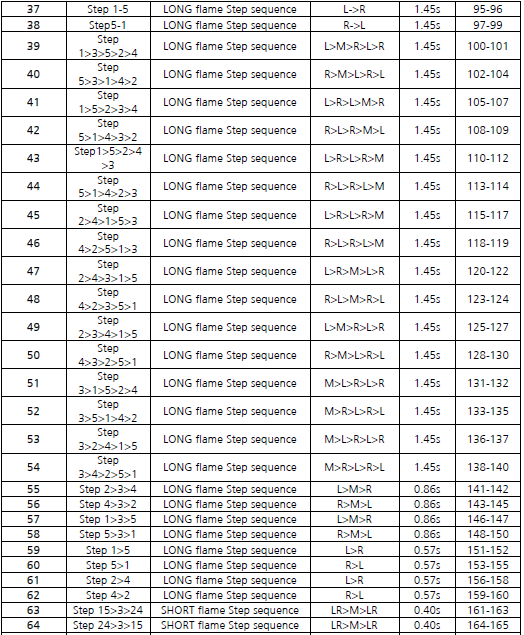

Δ uFlamer Volcano Firing Sequences

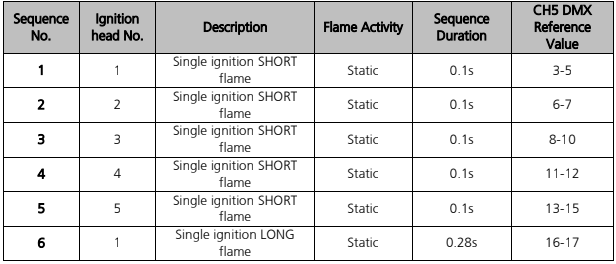

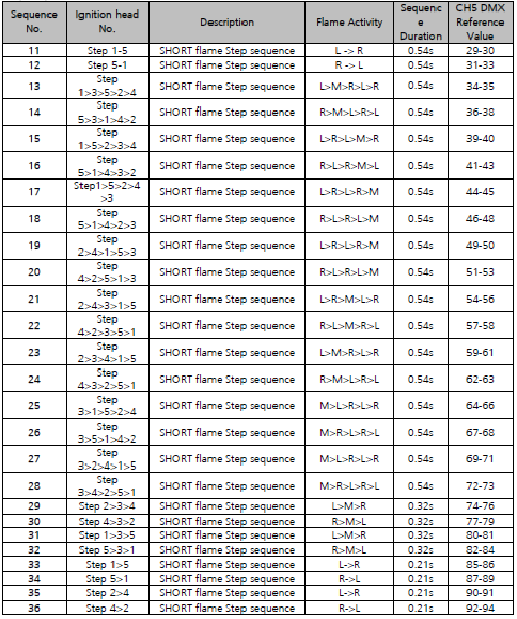

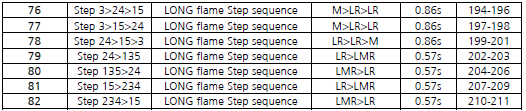

uFlamer Volcano with more than 97 preset firing sequences. Operator use related channel DMX value or
sequence No. to access certain sequence. Sequence list as below:

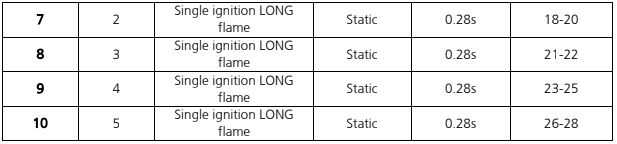

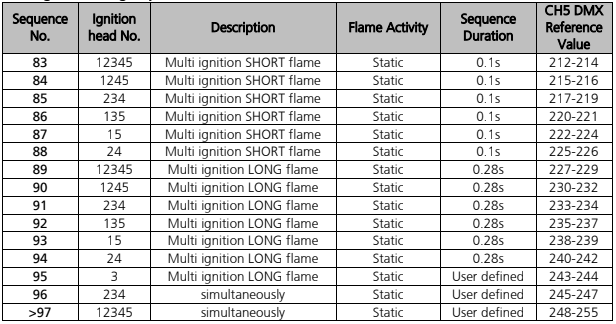

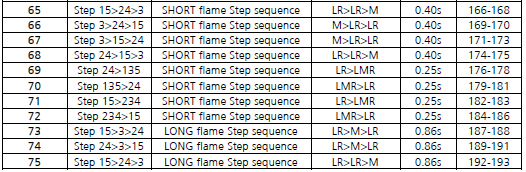

Single Ignition Sequence List


Step Sequences List




Multi ignition firing sequence list

Δ DMX CONTROL

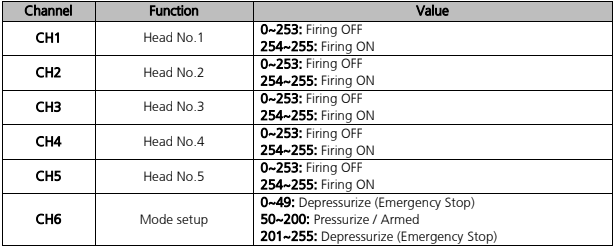

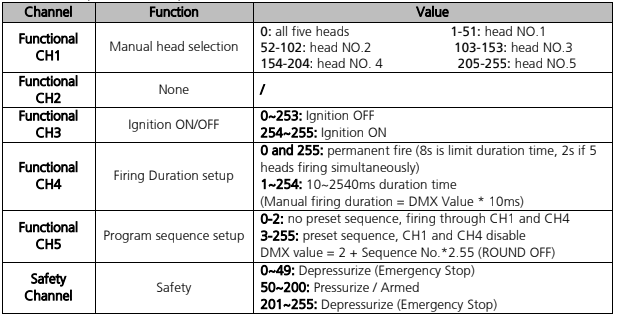

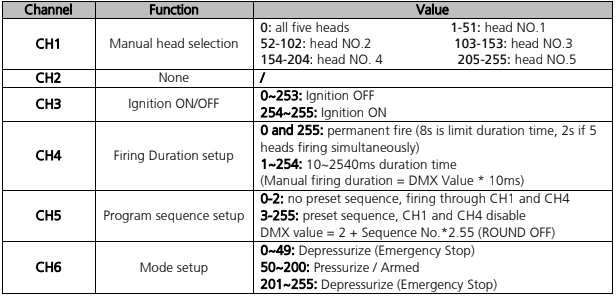

uFlamer Volcano with 3 different channel mode switchable: 6CH Normal Mode, 6CH Pro Mode, 6CH Safe
Mode.
6CH Normal Mode
In this channel mode uFlamer Volcano occupies 6 functional channels.

6CH Pro Mode
In this channel mode uFlamer Volcano occupies 6 functional channels.

6CH Safe Mode
In this channel mode uFlamer Volcano occupies 5 functional channels and 1 separate safety channel (this
channel is independent from operational channel, can be shared with other machine).



Control with SHOWVEN Host Controller ZK6200/ZK6300

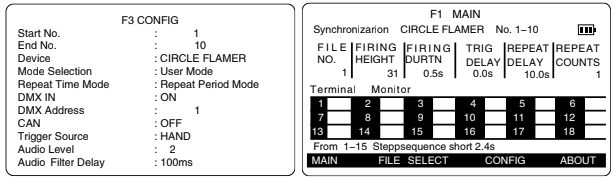

If use SHOWVEN Host Controller ZK6200 or ZK6300 to program the uFlamer Volcano, after set 6CH
Normal Mode for uFlamer Volcano please also set on Host Controller. The setting step is:
Press “F3” on Host Controller – find “Device” – choose the right device “CIRCLE FLAMER”.
Host Controller with bi-directional communication with device, please allocate a unique DMX address for
each unit of uFlamer Volcano.
Press “Pre-heat” to start to pressurize uFlamer Volcano.
Firing the preset flame effect by enter the preset sequence No. to FIRING HEIGHT.

Δ Operation
1. Safety Distance
Definition and Instructions
Safety distance for uFlamer Volcano divided into two parts safety radius around machine (a) and safety
distance at firing direction (b). No person and flammable materials are allowed to stay inside the safety
isolation zone when flamer was armed.
For uFlamer Volcano due to it with 5 flame heads, firing angle from -40° to +40°, operators should pay
special attention to the radius around machine (a) and safety distance at firing direction (b). Especially
when multi heads firing simultaneously the heat wave is enormous.
The safety radius around machine depends on the firing height (nozzle size), For safety distance at firing
direction equals to maximum firing height * 1.5.

The uFlamer Volcano safety isolation zone is a three-dimensional space with an 80° fan-shaped section
enclosed by a and b (check below diagram). Unauthorized persons and objects are strictly prohibited from
entering
.

Safety distance in windy environment
The safety isolation zone radius (a) increase with wind direction and wind speed (v, m/s). The safety
distance in windy conditions can be calculated as below:
For Nozzle L: a = 2.5 + v;
For example when the wind speed is 3m/s, we use the Nozzle L, then the safety isolation zone radius
should be 5.5m.
CAUTION:
When the wind speed ≥ 8m/s (wind force ≥ 5), please use it with caution. When wind speed ≥ 17m/s
(wind force ≥ 8), please stop use flamer.

Direction Explanation

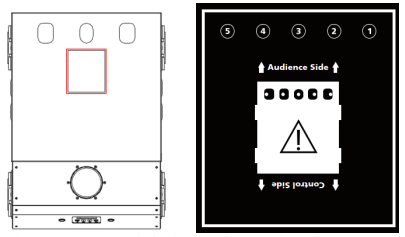

There is direction explanation on top panel of uFlamer Volcano as show above picture.
1. 1 to 5 is 5 flame heads of uFlamer Volcano, Far Right is flame head 1, Middle is flame head 3, Far Left
is flame head 5.
2. Audience side and control side are indicated in above picture.

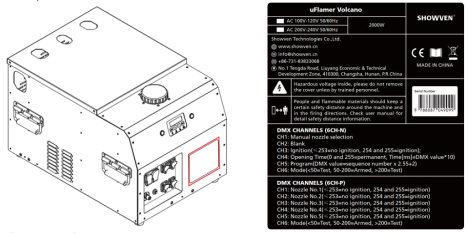

Label of uFlamer Volcano
The label is at rear panel of machine and information is show as below.

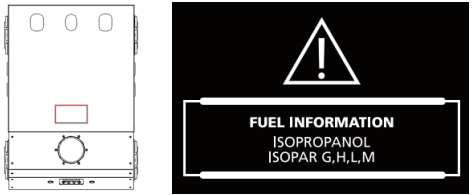

Fuels for uFlamer Volcano
1. Water content in fuel should less than 0.5%
2. For maximum safety, please use fuel with flash point between 60-80°C, ISOPAR L is highly
recommended.
3. Ethanol is not suggested due to three reasons, first ethanol is highly flammable makes it not as safe as
ISOPAR; secondly the color of flame is very weak; thirdly there are always high water content (> 0.5%)
in ethanol.

4. Colored fuels are forbidden to use on uFlamer Volcano it may damage the machine.SHOWVEN
excludes liability for the losses, damages and accidents caused by not using qualified fuels in
accordance with this requirement.
Always have a dry powder fire extinguisher, a CO2 fire extinguisher and an extinguishing blanket next to
the equipment in case of needed. And someone must be on duty during operation. In case accident
occurs, a dry powder fire extinguisher can be used when the fire is large, and a carbon dioxide fire
extinguisher can be used when the fire is small.

2. Install uFlamer Volcano

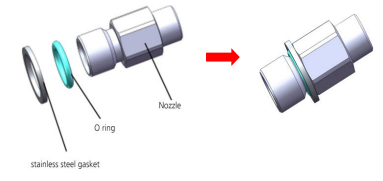

a) Choose the correct nozzle, ensure the installation position of uFlamer Volcano meet above safe
distance requirements. New uFlamer Volcano supplied with a nozzle M which generate up to 10m
flame.
b) Horizontal installation is highly recommended for uFlamer Volcano.
c) Make sure uFlamer Volcano is securely installed. For truss installations always connect with safety
ropes to ensure extra safety. If there is any other national or regional guidelines please follow it
accordingly.
3. Connect Power and DMX cable to uFlamer Volcano
Before power and/or DMX cable connection, make sure safety lock of uFlamer Volcano stay at TEST
MODE as below.

If control by DMX, follow below steps:
a) Connect a power cable to the POWER IN socket of uFlamer Volcano. Connect the other end of
power cable to the power source. Each unit of uFlamer Volcano connected to power supply directly.
Make sure power supply in consistent with the rated voltage of the equipment, and the socket must
well grounded.
b) Power on machine.
c) Assign a DMX address for each unit of uFlamer Volcano. If use SHOWVEN host controller or
FXcommander to control the machine please allocate a unique DMX address for each unit of
machine.
d) Connect a DMX cable to the DMX IN socket of first unit of Volcano, another head of this DMX cable
connect to DMX console (such as FXcommander). Make sure the DMX console is powered off.
e) Connect a DMX cable to the DMX OUT socket of previous Volcano, and the other end to the DMX
IN of next machine. Connect all devices in series in this way.
f) Suggest to plug in a DMX terminator into the DMX OUT in last unit of machine to improve signal
reliability. Signal amplifier is required for long distance (>200m) DMX signal transmission.

If control by 9-60V pyro signal, follow below steps:
a) Connect a power cable to the POWER IN socket of uFlamer Volcano. Connect the other end of
power cable to the power source. Each unit of uFlamer Volcano connected to power supply directly.
Make sure power supply in consistent with the rated voltage of the equipment, and the socket must
well grounded.
Power on uFlamer Volcano.
b) Set the Ext Ignite to ON status in advanced interface, set the Ext Ignite Time. When use External
trigger, uFlamer Volcano can only firing 5 heads simultaneously.
c) Connect the power control cables to the 9-60V pyro signal connector on uFlamer Volcano.
d) Connect the other end of power control cables to the pyro controller (9-60V external trigger source).
Make sure the pyro controller is powered off.
4. Power ON the DMX console or pyro controller
5. Programming
Program the uFlamer Volcano with DMX console.
6. Test the ignition function of uFlamer Volcano
Test the ignition function of uFlamer Volcano, we can check whether the igniters of each unit of
Volcano are working fine. Due to the safety switch is stay at TEST MODE the pump won’t work, there
will be only ignition while no fuel spray out, so no flames generated.
7. Fill the uFlamer Volcano
a) Please fill the machine with qualified fuel. The fuels suggested on Volcano are ISOPAR,
ISOPROPANOL, please make sure water content in fuel should less than 0.5%.
b) uFlamer Volcano can also support automatic fueling through SHOWVEN fueling station uPumper
Fueling, connect the Volcano and Fueling station through Fuel Input quick coupler.
c) For maximum safety, when use the uPumper Fueling only use fuel with flash point between 60-80°C,
ISOPAR L is highly recommended. ISOPROPANOL, Ethanol etc highly flammable fuels are forbidden
to use on uPumper Fueling.
8. Firing
a) Double confirm the prescribed safety isolation zone is clear, no person, animal or other property
within this region.
b) Switch the safety switch of uFlamer Volcano to USER MODE.

c) Pressurize uFlamer Volcano.
d) Firing, the operator should always have a clear view of the device, so that he/she can stop the show
immediately when there is danger.
9. Depressurize
Depressurize all uFlamer Volcano after use or if not use for a long time during the show we also
suggest to depressurize to ensure the safety.
10. Power OFF
a) Power OFF DMX console.
b) Switch safety switch of uFlamer Volcano to TEST MODE.
c) Power OFF uFlamer Volcano.
d) Unplug power cable, DMX cable.

Δ Nozzles and Nozzle Replacement
Nozzles and Flame Height
Nozzle M: (standard configuration)
Short flame: 5-7m,
Long flame: 8-10m.
Nozzle L:
Short flame: 3-5m,
Long flame: 6-8m.
Nozzle EL:
Short flame: 3-4m,
Long flame: 4-6m.

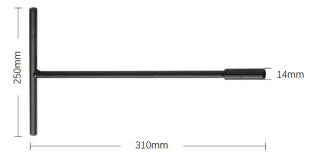

Nozzle Replacement Wrench
Use 14mm outer hexagon socket wrench to disassemble the nozzle, clean the nozzle and nozzle socket
with air gun (air compressor), change a different nozzle and install it.

Nozzle Installation available in new design
Please assemble the stailess steel gasket(RMSMA530), O ring and nozzle main part according to below
picture. The O ring should be inside the stailess steel gasket, otherwise it may leads to fuel leakage.
Use nozzle replacement tool outer hexagon socket wrench to tighten the nozzle.

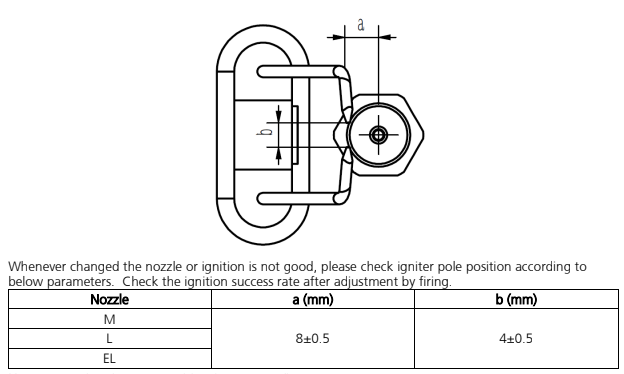

Δ Igniter Position Adjustment

Note: Do unplug the power cable when service flamer.

Δ Maintenance
1. To maintain the system in good performance and running status, it is recommended to running the
device at least once per month.
2. Check the ignition probes both before and after each show, if there is any foreign objects on it please
clean it up.
3. Maintenance of the nozzle: Nozzle needs to be cleaned from time to time, and it is recommended that
once every six months (depending on the environment and frequency of use). In the process of using
the equipment, if the flame shape is seriously deformed or the fuel injection line is significantly
deformed or coarsened, the nozzle should be removed immediately for cleaning. If after clean, there
are still problems please replace new nozzle.
4. Maintenance of the O-ring: If it is found that the O-ring of the nozzle is damaged or ageing when
cleaning the nozzle, the O-ring should be replaced in time (material and size of O-ring: fluororubber O-
ring, the outermost diameter is 14 mm, and the line diameter is 2 m

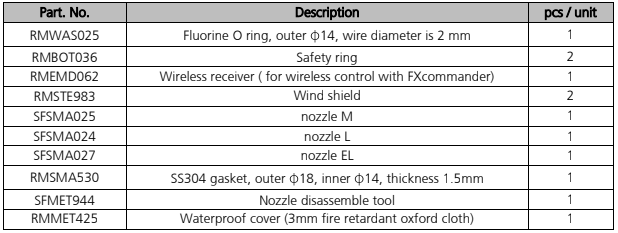

Δ Optional Parts

Δ Warranty Instructions
\ Sincere thanks for your choosing our products, you will receive quality service from us
\ The product warranty period is one year. If there are any quality problems within 7 days after shipping
out from our factory, we can exchange a brand new same model machine for you
\ We will offer free of charge maintenance service for machines which with hardware malfunction
(except for the instrument damage caused by human factors) in warranty period. Please don't repair
machine without factory permission
Below situations NOT included in warranty service:
\ Damage caused by use unqualified fuels;
\ Damage caused by improper transportation, usage, management, and maintenance, or damage caused
by human factors;
\ Disassemble, modify or repair products without permission;
\ Damage caused by external reasons (lightning strike, power supply etc.)
\ Damage caused by improper installation or use;
For product damage not included in warranty range, we can provide paid service.
Invoice is necessary when applying for maintenance service from SHOWVEN



Write Your Own Review
You're reviewing: Showven uFlamer Volcano
loader
Loading...

check-circle You submitted your review for moderation.
