Solenoid Shut Off Valve with Wiring

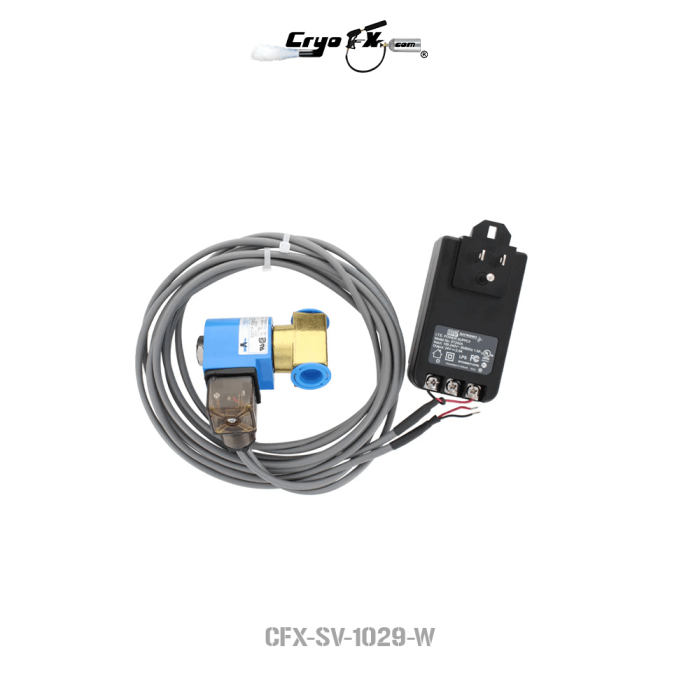

The CryoFX Solenoid Shut Off Valve with Wiring (CFX-SV-1029-W) is an automatic CO2 safety shut-off valve designed to immediately stop the flow of carbon dioxide whenever a connected CryoFX gas monitoring system detects hazardous CO2 concentrations. Installed directly on the gas supply line, this electrically actuated solenoid valve provides an additional layer of protection by helping isolate the gas source before elevated CO2 levels continue to increase within the monitored area.

When used with compatible CryoFX CO2 monitoring systems, the valve operates through one of the monitoring system's programmable safety relays. As soon as the monitor enters a configured alarm condition, the relay automatically energizes the solenoid valve, shutting off the gas supply without requiring operator intervention. This rapid response helps reduce continued CO2 discharge while allowing facility personnel to safely investigate and correct the source of the leak.

The CFX-SV-1029-W is commonly installed on bulk CO2 storage systems, beverage carbonation equipment, restaurants, breweries, bars, wineries, laboratories, dry ice storage systems, indoor agriculture, food processing facilities, industrial gas storage rooms, and commercial compressed CO2 installations where automatic gas isolation is desired or required by facility safety procedures.

Manufactured with a durable brass valve body, the valve is designed for dependable commercial operation and is suitable for pressures up to 140 PSI. The assembly includes a 24VDC power supply, allowing straightforward integration with compatible CryoFX monitoring equipment. Its NEMA 4X and IP65 enclosure ratings provide excellent protection against dust, moisture, and demanding indoor operating environments.

The standard 3/8-inch valve is commonly used throughout the beverage and hospitality industry. For installations utilizing rigid pipe or tubing—such as indoor agriculture and industrial processing applications—CryoFX also offers a 1/2-inch shut-off valve option for larger plumbing configurations.

Update:

This is a pre-packaged configuration. Should you need more than one valve, different types of valves, or other valves included or in place of this that are listed on our website, contact us and we can create a custom package for you with specific options.

Features

• Automatically shuts off CO2 flow during alarm conditions
• Integrates directly with compatible CryoFX CO2 monitoring systems
• Operates using programmable relay outputs
• Helps minimize continued CO2 release during gas leaks
• Includes 24VDC power supply
• Durable brass valve construction
• Commercial-grade automatic gas shut-off solution
• NEMA 4X environmental protection
• IP65 rated enclosure
• Simple installation with included wiring
• UL and CSA compliant
• Ideal for commercial CO2 safety systems

Compatible Systems

Designed for use with:

• CFX-RAD-0102-6-HS2 Remote CO2 Storage Safety 3 Alarm with Horn Strobes
• CFX-RAD-0102-6-KIT Complete CO2 Storage Safety Monitoring Kit

Applications

Recommended for:

• Restaurants
• Bars
• Breweries
• Wineries
• Beverage carbonation systems
• Beverage gas rooms
• CO2 storage rooms
• Dry ice storage
• Laboratories
• Pharmaceutical facilities
• Indoor agriculture
• Grow operations
• Food processing facilities
• Manufacturing plants
• Industrial compressed CO2 systems

Specifications

Valve Specifications

• Pipe Size: 3/8 inch
• Orifice Diameter: 1/8 inch
• Minimum Operating Pressure: 0 PSI
• Maximum Operating Pressure: 140 PSI
• Coefficient of Volume (Cv): 0.30
• Body Material: Brass

Dimensions

• Length: 1 15/64 inches
• Width: 1.72 inches
• Height: 3.25 inches

Electrical Specifications

• Operating Voltage: 24VDC
• Power Consumption: 10 Watts
• Power Supply Included: 110VAC to 24VDC Adapter

Environmental Ratings

• NEMA Rating: 4X
• IP Rating: IP65

Certifications

• UL Approved
• CSA Compliant

What's Included

• CFX-SV-1029-W Solenoid Shut Off Valve
• Factory-installed wiring
• 110VAC to 24VDC Power Supply
• Installation-ready assembly

Why Install an Automatic CO2 Shut-Off Valve?

While a CO2 monitoring system alerts personnel to elevated carbon dioxide levels, an automatic shut-off valve adds another critical layer of protection by stopping the gas supply at its source. By automatically isolating the CO2 supply during alarm conditions, facilities can reduce continued gas release, minimize exposure risks, and simplify emergency response procedures.

This makes the CFX-SV-1029-W an ideal addition for businesses seeking a more comprehensive CO2 safety system, particularly in environments where compressed carbon dioxide is used continuously or stored in large quantities.

Warranty

• 1 Year Manufacturer Warranty
